What is a Cable?

In electrical engineering, a cable is fundamentally an assembly of one or more conductors held together, typically used to carry electric current.It serves as a critical component in electrical and electronic systems, designed to transmit power, telecommunication signals, data, or light from one location to another.A cable is more than just a wire; it's a structured component engineered for specific performance and protection.

What is the Purpose of a Cable?

Cables serve a variety of essential purposes, broadly categorized as:

• Transmission of Electrical Energy: Power cables are designed to carry high voltages and currents to supply electricity to various equipment, buildings, and infrastructure over different distances.
• Telecommunication Signals: Communication cables are designed to transmit information.Unlike power cables, these operate with small voltages and currents, focusing on signal integrity for telecommunications.
• Data Transmission: In modern networks, data cables are crucial for transferring digital information between devices, supporting internet connectivity, data centers, and more.
• Light Transmission: Fiber optic cables utilize light to transmit data at high speeds and over long distances, essential for modern communication networks.

What are the Main Components of a Cable?

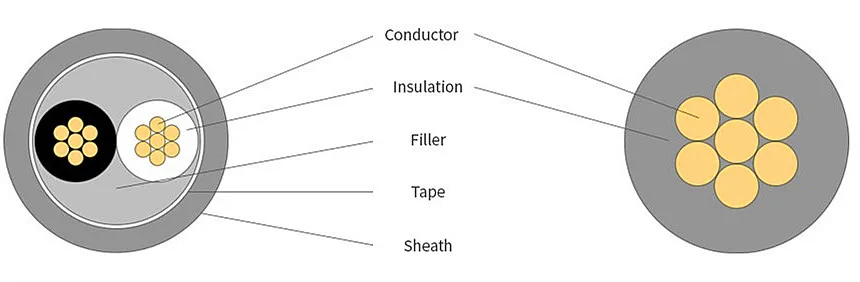

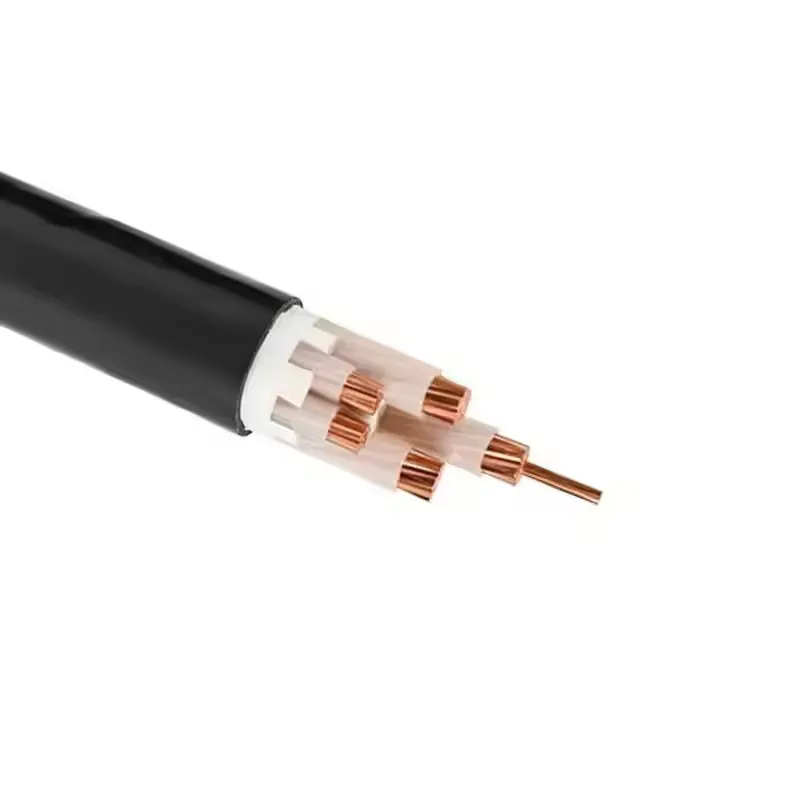

A typical electrical cable comprises several layers, each serving a specific function:

• Conductor: This is the core of the cable, made from conductive materials like copper or aluminum, responsible for carrying the electrical current.¹⁰Copper is favored for its higher conductivity, while aluminum is lighter and more cost-effective.
• Insulation: An insulating layer surrounds the conductor(s) to prevent current leakage and ensure safety.Common insulation materials include Polyvinyl Chloride (PVC), Cross-linked Polyethylene (XLPE), and rubber compounds.
• Sheath or Jacket: An outer protective layer that encases the insulated conductor(s), providing mechanical protection, environmental resistance, and additional insulation.
• Shielding (Optional): Some cables include a conductive layer (shield) to minimize electromagnetic interference (EMI), ensuring signal integrity, especially in communication cables.
• Armoring (Optional): For enhanced mechanical protection, particularly in harsh environments or direct burial applications, cables may include an armor layer made of steel wire or strips.

How are Cables Classified?

Electrical cables are classified based on various criteria to match them with specific applications and requirements:

• By Voltage Level:

  • Low Voltage (LV) Cables: Used for applications like household wiring and small appliances.
  • Medium Voltage (MV) Cables: Suitable for larger buildings and industrial applications.
  • High Voltage (HV) Cables: Employed for transmitting electricity over long distances in power grids.
  • Extra-High Voltage (EHV) Cables: Designed for very high power transmission systems.




• By Insulation Material:

  • PVC Cables: Utilize Polyvinyl Chloride (PVC) for insulation, common due to its good insulation properties and cost-effectiveness.
  • XLPE Cables: Employ Cross-linked Polyethylene (XLPE) insulation, known for higher temperature resistance and better electrical properties.
  • Rubber Cables: Use rubber insulation, offering high flexibility and water resistance, suitable for portable applications.
  • Halogen-free Cables: Use materials like thermoplastic polyolefin or thermosetting elastomer that produce less toxic fumes in case of fire, enhancing safety.




• By Application:

  • Power Cables: For power transmission and distribution.
  • Network Cables: For data communication networks (e.g., Ethernet cables).
  • Armored Cables: For installations requiring mechanical protection.
  • Flexible Cables: Designed for dynamic applications requiring bending and flexing, such as in portable devices or machinery.
  • Coaxial Cables: Used for radio frequency signals, like in TV and internet connections.

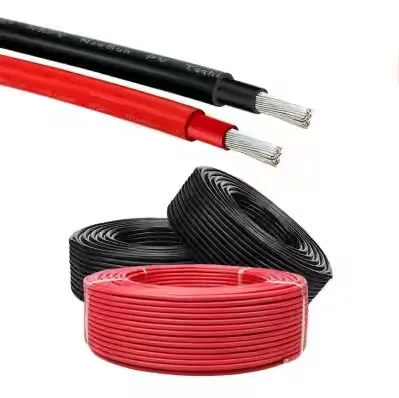

  • Solar Cables: Specifically designed for photovoltaic systems, resistant to UV radiation and extreme temperatures.

  Source: Wikipedia - Electrical cable

What are Some Common Types of Cables?

Based on the classifications and applications, here are a few common types of electrical cables:

• NM-B (Non-Metallic Sheathed Cable): Commonly used for residential wiring, containing multiple insulated conductors within a plastic jacket.
• UF Cable (Underground Feeder Cable): Designed for direct burial in the ground, used for outdoor lighting and underground circuits.
• THHN/THWN Wire: Single conductor wires used inside conduits, known for heat and moisture resistance, often used in commercial and industrial applications.
• Coaxial Cable: Used for transmitting high-frequency signals, commonly used for cable television and internet.
• Fiber Optic Cable: Transmits data as light pulses through glass or plastic fibers, offering high bandwidth and long-distance communication.
• Ethernet Cable (Cat5e, Cat6, etc.): Used in computer networks to connect devices in a local area network (LAN).

Understanding cable definitions and classifications is crucial for selecting the right cable for each electrical and electronic application, ensuring safety, efficiency, and optimal performance.
