Can I use any cable for solar panels?

Using the correct cable for solar panels is crucial for safety, efficiency, and longevity in a photovoltaic (PV) system. While it might be tempting to use any available cable, solar installations have specific requirements that not all cables can meet. This article explores the question through three key sections, using a table to compare cable types and engaging analogies to clarify concepts.

Table of Contents

• What Are the Requirements for Solar Panel Cables?

• What Happens If You Use the Wrong Cable?

• What Cables Should You Use for Solar Panels?

What Are the Requirements for Solar Panel Cables?

Solar panel cables are DC cables (as discussed in prior DC/AC cable contexts) that connect panels to inverters, charge controllers, or batteries, typically operating at 12V–48V (or higher for large systems). They must meet specific requirements to handle the unique conditions of PV systems:

• DC Voltage Rating: Solar cables must handle DC voltages (e.g., 600V–1000V per IEC 61730, as discussed earlier), as solar panels produce DC. AC cables like 14-2 NM-B (rated for 230V AC) may not withstand sustained DC voltage stress.
• UV and Weather Resistance: Solar cables are often exposed to sunlight, rain, and extreme temperatures (e.g., 50°C in Saudi Arabia, as discussed). They need UV-resistant insulation (e.g., XLPE) and weatherproof jackets to prevent degradation.
• Temperature Rating: Cables must operate in high temperatures (e.g., -40°C to 90°C) without melting or cracking. Standard PVC-insulated cables (e.g., for indoor wiring) often fail in such conditions.
• Low Voltage Drop: Solar systems require minimal voltage drop (e.g., <3% per IEC) to maintain efficiency. Cables like 4mm² or 6mm² (as discussed in prior solar cable contexts) are sized to reduce losses over long runs.
• Fire Safety: Cables must meet fire resistance standards (e.g., IEC 60332) and often use low-smoke, halogen-free (LSHF) materials to reduce toxic fumes in case of fire, especially in commercial installations.

These requirements are like a “checklist” for a solar cable—failing to meet even one can lead to system failure or safety hazards.

What Happens If You Use the Wrong Cable?

Using an inappropriate cable for solar panels can lead to serious issues, affecting performance, safety, and compliance. Below is a table summarizing the risks:

Overheating and Fire Risk: A cable not rated for the current (e.g., a 2.5 mm² AC cable for a 40A DC solar load) can overheat, melt, or cause a fire, as it lacks the capacity (e.g., 4mm² handles 30A, 6mm² handles 40A, as discussed).

Insulation Failure: Non-UV-resistant cables (e.g., standard PVC house wiring) degrade under sunlight, leading to cracking, short circuits, or shocks, especially in harsh climates like Saudi Arabia’s.

Excessive Voltage Drop: An undersized cable (e.g., 1.5 mm² over 30m) can cause a high voltage drop (e.g., 10% at 20A), reducing system efficiency and power output, unlike properly sized solar cables (e.g., 6mm² with 2.75% drop at 10m).

DC Voltage Stress: AC cables like 14-2 NM-B aren’t designed for sustained DC voltage, risking arcing or equipment damage (e.g., frying an inverter), as DC doesn’t “reset” like AC (as discussed in DC/AC contexts).

Non-Compliance: Using non-compliant cables violates standards like IEC 61730 or local codes (e.g., SASO in Saudi Arabia), leading to failed inspections, fines, or insurance issues.

Using the wrong cable is like using a “paper straw” for a thick milkshake—it might seem to work at first, but it’ll fail under pressure, causing a mess.

What Cables Should You Use for Solar Panels?

No, you cannot use just any cable for solar panels—specific solar cables are required to meet the demands of PV systems. Here are the recommended cables and best practices:

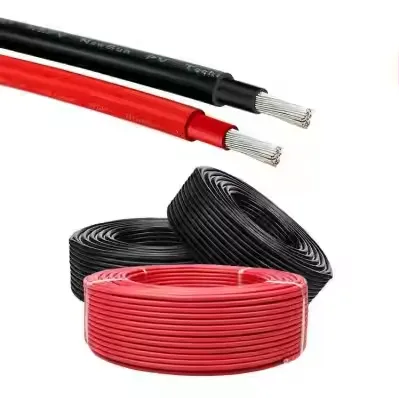

• Use Dedicated Solar Cables: Choose cables labeled as “PV wire” or “solar cable,” typically 4mm², 6mm², or larger (as discussed in prior solar cable contexts). They’re double-insulated, UV-resistant, and rated for 600V–1000V DC, meeting standards like IEC 61730 or EN 50618.
• Size Appropriately: Match the cable size to your system’s current and length. For example, use 4mm² for small systems (1–2 kW, <30A, short runs) and 6mm² for larger systems (2–3 kW, up to 40A, longer runs) to keep voltage drop below 3%.
• Check Environmental Ratings: Ensure the cable is rated for your climate (e.g., -40°C to 90°C, UV-resistant XLPE insulation), especially in hot regions like Saudi Arabia where temperatures reach 50°C.
• Verify Fire Safety: Use cables with fire-resistant properties (e.g., IEC 60332) and LSHF materials, especially for commercial or rooftop installations where fire safety is critical (as per Russian/Saudi standards).
• Follow Local Codes: Comply with local regulations—e.g., Saudi Arabia’s SASO may require additional heat resistance, while the U.S. NEC (Article 690) mandates PV wire for solar installations.

Examples of Suitable Cables: A 4mm² solar cable (30A, 48V) is ideal for a small rooftop system with a 10-meter run, while a 6mm² cable (40A) suits a larger system with a 20-meter run. Avoid using AC cables (e.g., 14-2 NM-B), general-purpose wires, or undersized cables (e.g., 1.5 mm²), as they can’t handle solar conditions.

Choosing the right solar cable is like picking the right “gear” for a hike—you need something durable, rated for the terrain (sun, heat), and sized for the journey (current, distance) to reach your destination safely.

Conclusion

You cannot use any cable for solar panels—dedicated solar cables (e.g., 4mm², 6mm²) are required to handle DC voltage (600V–1000V), UV exposure, high temperatures (-40°C to 90°C), low voltage drop (<3%), and fire safety (IEC 60332). Using the wrong cable (e.g., 14-2 NM-B, undersized wires) risks overheating, insulation failure, excessive voltage drop, equipment damage, and code violations. Opt for PV-specific cables, size them for your system (e.g., 4mm² for small setups, 6mm² for larger ones), and ensure compliance with standards like IEC 61730 and local codes (e.g., SASO, NEC). The right cable ensures a safe, efficient, and long-lasting solar installation.
