Introduction

The volume resistivity of semi-conductive shields plays a crucial role in determining the electrical performance of high-voltage cables. These shields help regulate electric field distribution, reduce partial discharge, and enhance insulation stability. However, traditional detection methods for large-scale cables suffer from several challenges:
✔ Manual sample preparation results in uneven surfaces, leading to inconsistent test data.
✔ Low testing efficiency makes large-scale quality control difficult.
✔ Current resistivity measurement techniques lack precision, particularly for high-resistance samples.

This study proposes an improved testing process using large-scale cutting machines, fixed mold techniques, and copper sheet molds to enhance the accuracy and reliability of volume resistivity detection for semi-conductive shields in large-diameter cables (64/110 kV and above).

1. Key Challenges in Current Testing Methods

1.1 Sample Preparation Issues

Large-diameter cables require precise sample preparation, but manual cutting methods introduce several problems:

• Irregular sample surfaces → Affects contact between electrodes and sample.
• Low efficiency → Time-consuming manual operations slow down testing.
• High rejection rates → Errors in cutting lead to wasted samples.

➡ Conclusion: Upgrading to large-scale cutting machines significantly improves efficiency and safety.

1.2 Problems in Volume Resistivity Measurement

A. Conductor Shield Resistivity Testing Issues

Traditional conductive paste coating method for resistivity testing suffers from:

• Long curing times (12+ hours at room temperature).
• Electrode damage due to sharp contact points.

B. Insulation Shield Resistivity Testing Issues

The self-adhesive copper tape method, commonly used for insulation shields, has drawbacks:

• Weak adhesion at high temperatures (90°C) → Copper tape falls off.
• Uneven contact with the sample, causing measurement errors.

➡ Conclusion: A more stable and repeatable resistivity testing process is needed.

2. Proposed Process Improvements

2.1 Upgraded Sample Preparation Method

Large-scale cutting machines were introduced to replace manual cutting, ensuring smooth, uniform sample surfaces.
➡ Effect: Increased efficiency, improved cutting accuracy, and reduced sample waste.

2.2 Improved Volume Resistivity Testing Techniques

A. Copper Sheet Mold Method (Replacing Conductive Paste Method)

✔ Pre-fabricated copper sheet molds ensure stable contact with the sample.
✔ Eliminates long curing times, improving testing speed.

B. Fixed Mold Method (Replacing Self-Adhesive Copper Tape Method)

✔ Uses a tight-fit mold to secure copper electrodes against the sample.
✔ Prevents detachment at high temperatures, ensuring reliable data collection.

➡ Effect: Enhanced measurement consistency, reducing error rates.

3. Experimental Validation and Results

3.1 Sample Quality Comparison

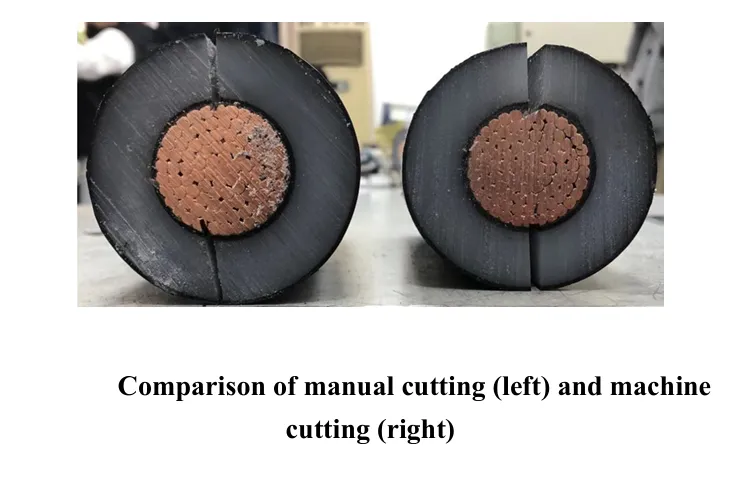

➡ Key Finding: Automated cutting ensures smoother samples and faster preparation.

3.2 Volume Resistivity Test Results

Tested on 64/110 kV cables with different cross-sectional areas:

A. Conductor Shield Resistivity Results

➡ Copper sheet method consistently produced lower and more stable resistance values.

B. Insulation Shield Resistivity Results

➡ Fixed mold method significantly reduced resistance fluctuations, ensuring measurement accuracy.

4. Engineering Insights and Industry Implications

4.1 Impact on Quality Control

✔ Higher repeatability → Eliminates sample variation.
✔ Reduced testing time → Increases productivity in manufacturing QC labs.

4.2 Economic and Industrial Benefits

➡ Manufacturers can improve efficiency while maintaining high-quality standards.

5. Conclusion and Recommendations

5.1 Summary of Key Improvements

✔ Large-scale cutting machines enhance sample preparation efficiency.
✔ Copper sheet molds eliminate inconsistencies in conductor shield resistivity testing.
✔ Fixed mold technique ensures reliable insulation shield resistivity measurement.

5.2 Future Research Directions

• AI-driven automation for real-time defect detection.
• Advanced materials for better shield conductivity and stability.
• Integration with smart monitoring systems for in-line testing.

Final Verdict: These improvements enhance testing accuracy and efficiency, making them highly beneficial for large-scale cable manufacturers.
