Solar Cables: A Comprehensive Guide

1. What are solar cables and why are they necessary?

Solar cables, also known as photovoltaic (PV) cables, are specialized electrical cables designed to connect solar panels and other components in a photovoltaic system. They are essential for efficiently and safely transmitting the direct current (DC) electricity generated by solar panels. Think of them as the veins of a solar power system, carrying the energy from the source (solar panels) to where it's needed (inverters, batteries, charge controllers, and ultimately, your appliances or the grid). Unlike regular electrical cables, solar cables are specifically engineered to withstand harsh environmental conditions and the unique demands of solar installations.

2. How are solar cables different from regular electrical cables?

Solar cables stand out from regular electrical cables due to their enhanced durability and resistance to environmental stressors. Here's a breakdown of key differences:

• UV Radiation Resistance: Solar cables are designed to endure prolonged exposure to direct sunlight and ultraviolet (UV) radiation without degrading. Regular cables would become brittle and crack over time under similar conditions.
• Weather Resistance: They are built to withstand extreme weather conditions, including rain, snow, hail, and temperature fluctuations. Solar cables maintain their integrity in both scorching heat and freezing cold, ensuring consistent performance year-round.
• Temperature Range: Solar cables can operate safely and efficiently in a wide temperature range, typically from -40°C to +90°C (and even up to 120°C for some types). This is crucial because solar installations, especially on rooftops, can experience very high temperatures.
• Flame Retardancy and Low Smoke Halogen Free (LSHF): For safety, solar cables are often flame retardant and LSHF. This means they are designed to not easily catch fire, and if they do, they produce minimal smoke and no harmful halogen gases, which is important for reducing risks in case of fire.
• Longevity: Solar installations are expected to last for 25 years or more. Solar cables are designed with a similar lifespan in mind, minimizing the need for frequent replacements in difficult-to-access locations.

In essence, regular electrical cables are designed for indoor or protected environments, while solar cables are specifically designed for the rigorous outdoor conditions faced by solar energy systems.

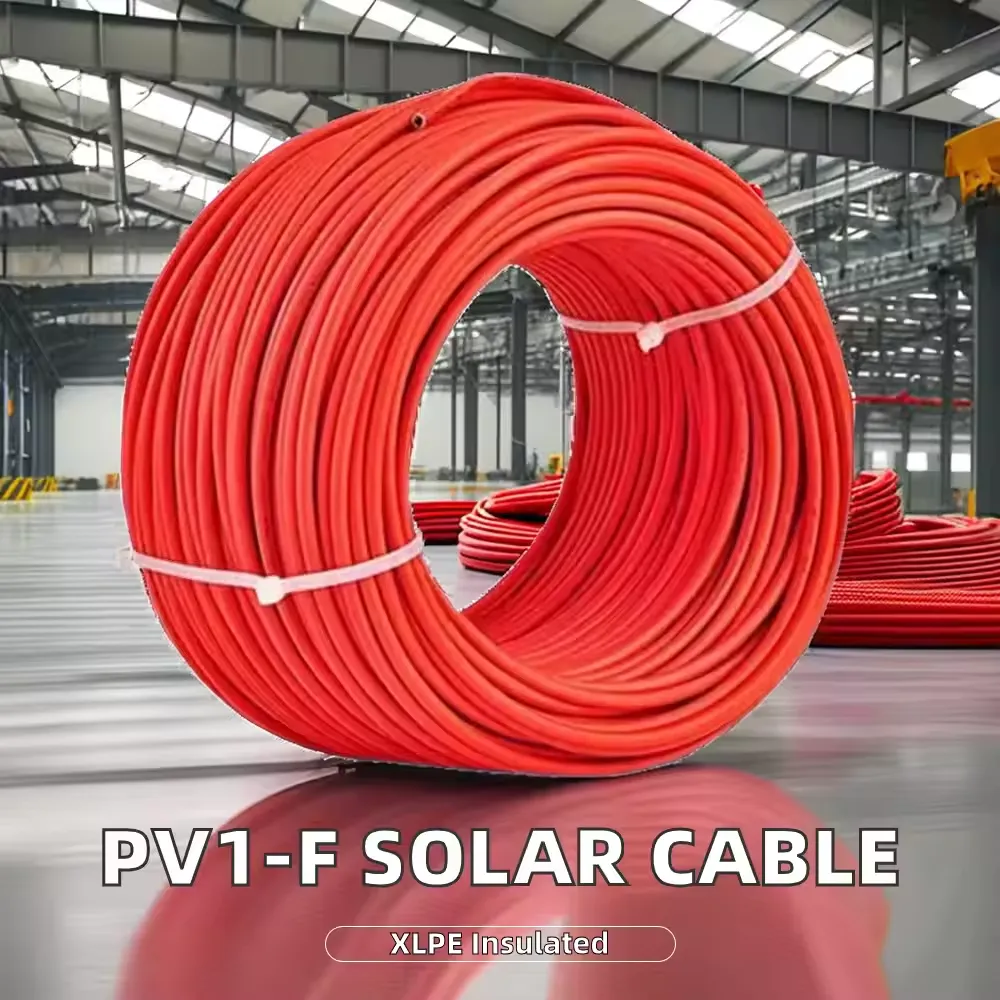

3. What materials are solar cables made of?

The construction of solar cables involves specific materials chosen for their performance and resilience:

• Conductor: Typically made of copper or tinned copper. Copper is favored for its excellent conductivity, and tinning helps to prevent corrosion, especially in damp outdoor environments.
• Insulation: Cross-linked polyethylene (XLPE) is the most common insulation material. XLPE provides excellent electrical insulation, heat resistance, and importantly, resistance to UV radiation and weathering.
• Jacket: Similar to the insulation, the outer jacket is also usually made of a robust polymer like XLPE or PVC (Polyvinyl Chloride), engineered for UV, weather, and abrasion resistance.

These material choices ensure that solar cables can reliably and safely conduct electricity while enduring the challenges of their operating environment.

4. Are there different types of solar cables?

Yes, solar cables can be categorized based on several factors:

• DC vs. AC Solar Cables:

  • DC Solar Cables: These are the most common type, used to connect solar panels in series and parallel configurations and to carry DC electricity to the charge controller or inverter. They are designed for higher DC voltages and are crucial in the initial energy conversion and transmission stage.
  • AC Solar Cables: Used on the output side of the inverter to carry the converted AC electricity to the grid or for local use. These cables must meet AC voltage and current requirements and safety standards.

• By Standards and Certifications: Cables are often classified by the standards they meet, such as TÜV (Technischer Überwachungsverein) and UL (Underwriters Laboratories) standards. These certifications ensure the cables have been tested and meet specific safety and performance criteria. For example, you might see cables labeled as H1Z2Z2-K (TÜV standard) or PV wire (UL standard).

• By Conductor Size: Solar cables come in various conductor sizes (measured in AWG or mm²) to accommodate different current-carrying capacities and system voltage drops over distance. Common sizes include 10 AWG, 12 AWG, and 14 AWG. The appropriate size depends on the system's power requirements and cable length.

Choosing the correct type of solar cable is crucial for system performance, safety, and regulatory compliance.

5. What are the advantages of using solar cables?

Using specialized solar cables offers numerous advantages in photovoltaic installations:

• Durability and Longevity: Designed to last for the long lifespan of a solar system (25+ years) due to their resistance to UV, weather, and temperature extremes, reducing maintenance and replacement costs.
• Enhanced Safety: Flame retardant and LSHF properties minimize fire risks and toxic smoke emission, crucial for the safety of buildings and people. Robust insulation and jacketing also protect against electrical hazards.
• Efficient Power Transmission: Low electrical resistance in conductors minimizes power loss during transmission, maximizing the energy yield from the solar panels.
• Reliability: Consistent performance under harsh conditions ensures a stable and reliable solar energy system.
• Compliance and Certification: Meeting industry standards (like TÜV and UL) ensures that the cables are safe and perform as expected, which is often a requirement for insurance and regulatory approvals.

6. Are there any disadvantages to consider?

While solar cables are essential and offer many benefits, there are a few considerations:

• Cost: Solar cables are generally more expensive than standard electrical cables due to their specialized materials and construction. However, this upfront cost is justified by their longevity and reliability, which can save money in the long run by reducing replacement and maintenance.
• Specific Installation Requirements: Proper installation is crucial to realize the benefits of solar cables. This might include using compatible connectors, adhering to bending radius limits, and ensuring correct cable sizing for the application.
• Material Compatibility: When selecting solar cables and connectors, it's important to ensure material compatibility to prevent galvanic corrosion, especially when using different metals in the system.

Despite these points, the advantages of using purpose-built solar cables significantly outweigh the disadvantages for solar energy systems.

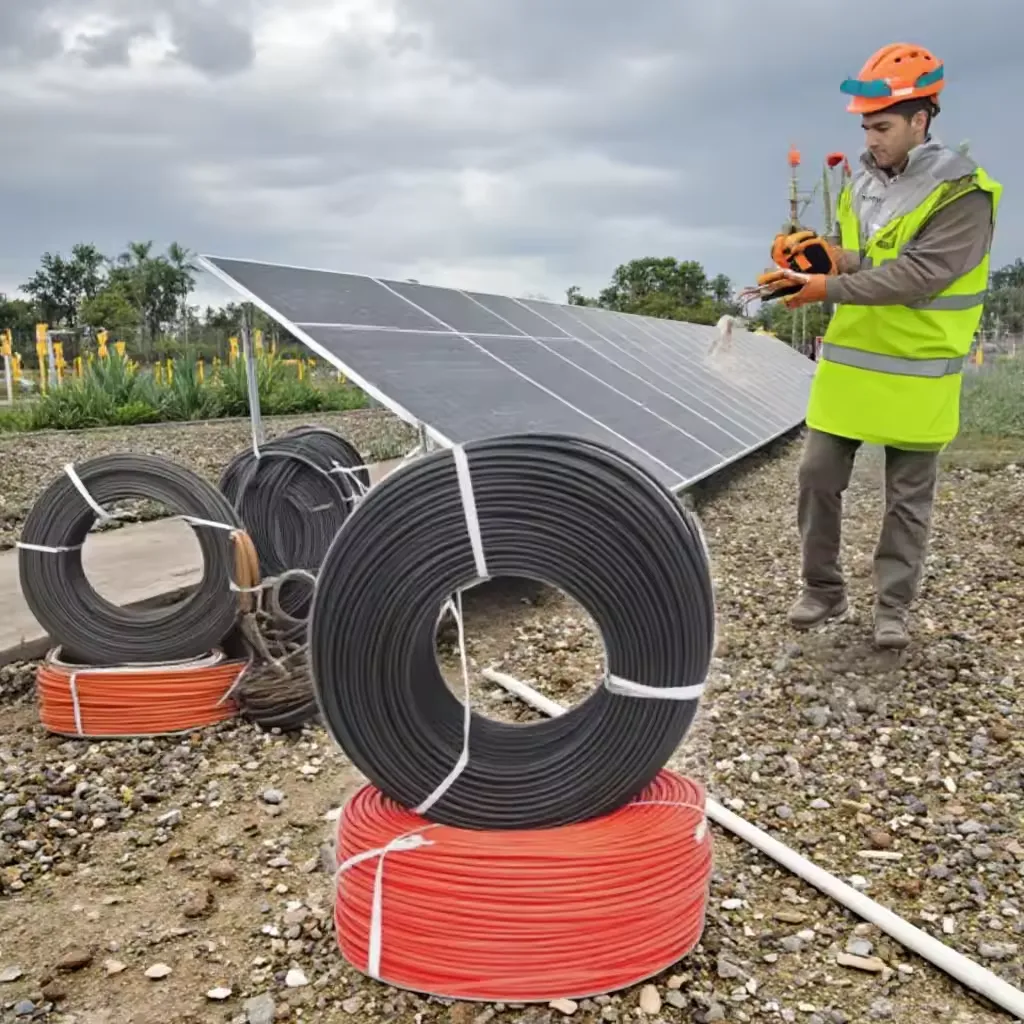

7. Where are solar cables used?

Solar cables are used throughout photovoltaic systems in a variety of applications:

• Interconnecting Solar Panels: Connecting individual solar panels in series and parallel to form arrays.
• Connecting Arrays to Combiner Boxes: Carrying the combined DC power from solar arrays to combiner boxes, which are safety disconnect points.
• From Combiner Boxes to Charge Controllers/Inverters: Transmitting DC power from combiner boxes to charge controllers (in battery-based systems) or inverters (in grid-tied systems).
• AC Wiring (post-inverter): Connecting the inverter to the electrical panel or grid, using AC solar cables designed for the converted alternating current.
• Battery Connections: In off-grid and battery backup systems, solar cables are also used for battery interconnections.

Essentially, solar cables are used wherever electrical power needs to be conducted within a solar photovoltaic system, from the panels to the final point of use or grid connection.

8. What standards and certifications should solar cables meet?

To ensure safety and performance, solar cables should comply with recognized industry standards and certifications. Key ones include:

• TÜV Rheinland: A globally recognized standard, especially in Europe, for PV cables. TÜV certifications (like TÜV 2 Pfg 1169/08.2007 and TÜV 2 Pfg 1169/09.20) cover cable construction, material quality, UV resistance, temperature ratings, and electrical characteristics. Cables certified to H1Z2Z2-K are compliant with the latest TÜV standards.
• UL (Underwriters Laboratories): The primary safety certification in North America. UL standard UL 4703 (for PV Wire) specifies requirements for cables used in PV systems.
• IEC 62930: An international standard that specifies test methods and requirements for cables for photovoltaic systems.
• National Electrical Code (NEC) (in the US): While not a cable standard, the NEC sets guidelines for the safe installation of electrical systems, including solar PV, and references cable standards like UL 4703.

Compliance with these standards is a mark of quality and safety. When selecting solar cables, look for these certifications to ensure they meet the necessary requirements for your solar installation.

9. How should solar cables be installed and maintained?

Proper installation and minimal maintenance are key to the long-term performance of solar cables:

• Correct Cable Sizing: Choose the right cable gauge (AWG or mm²) based on current, voltage, and cable length to minimize voltage drop and prevent overheating. Online calculators and guidelines are available for cable sizing.
• Proper Connectors: Use compatible, high-quality solar connectors (like MC4 connectors) that are also UV and weather resistant. Ensure connectors are correctly crimped and locked to prevent moisture ingress and loose connections.
• Secure and Protected Routing: Route cables neatly, avoiding sharp bends (observe minimum bending radii specified by manufacturers). Protect cables from physical damage by using conduits or cable trays where necessary, especially in exposed areas or where they might be walked upon.
• UV and Weather Exposure Management: While solar cables are UV and weather resistant, minimize unnecessary exposure where possible. Use cable ties and mounting methods suitable for outdoor, UV-exposed environments.
• Regular Inspection: Periodically inspect cables and connections for any signs of damage, wear, or corrosion, especially in harsh environments. Check for secure connections and cable integrity.

Maintenance is generally minimal due to the robust design of solar cables, but regular visual checks can help identify potential issues early.

10. Are there any safety precautions when working with solar cables?

Safety is paramount when working with any electrical system, including solar PV. Here are key precautions for solar cables:

• Work De-energized: Always disconnect the solar PV system before performing any wiring or maintenance. Solar panels generate electricity as soon as they are exposed to light, so proper lockout/tagout procedures are essential.
• Use Insulated Tools: Use tools with insulated handles rated for the voltages you might encounter in PV systems.
• Personal Protective Equipment (PPE): Wear appropriate PPE, including insulated gloves, safety glasses, and appropriate clothing.
• Understand DC Electricity: DC electricity, especially at higher voltages used in PV systems, can be more dangerous than AC. Be aware of DC arc flash hazards and take precautions to avoid them.
• Correct Polarity: Always observe correct polarity when making connections (positive to positive, negative to negative). Reverse polarity can damage equipment.
• Qualified Installers: Solar PV system installation should be performed by qualified and experienced solar installers who are familiar with PV wiring best practices and safety standards.

By understanding solar cables and following safety guidelines, you can ensure a safe, efficient, and long-lasting solar energy system.
