What Is the Strongest Type of Cable?

When discussing the "strongest" type of cable, we typically refer to its tensile strength—the ability to withstand pulling forces without breaking—along with durability under environmental stresses. Cables vary widely in purpose, from electrical transmission to mechanical support, so strength depends on the context. This article explores the concept of cable strength, compares different types of cables, and identifies the strongest options for specific applications, using a table to organize key data.

Table of Contents

• What Does "Strongest" Mean for Cables?

• What Are the Strongest Types of Cables?

• Where Are the Strongest Cables Used?

What Does "Strongest" Mean for Cables?

The strength of a cable is primarily measured by its tensile strength, which is the maximum pulling force it can withstand before breaking, typically measured in megapascals (MPa) or pounds per square inch (psi). Other factors contributing to strength include resistance to environmental stressors (e.g., corrosion, UV exposure, temperature extremes), fatigue resistance (ability to endure repeated stress), and overall durability.

• Tensile Strength: Determined by the material and construction. Steel, for example, has a tensile strength of 400–2000 MPa, depending on the alloy, far higher than aluminum (around 300 MPa).
• Construction: Stranded cables distribute stress across multiple wires, while a solid core may be stronger in some cases but less flexible.
• Environmental Durability: A cable might be mechanically strong but fail if it corrodes or degrades under harsh conditions.

Strength in cables isn’t just about brute force—it’s about balancing tensile strength with practical usability, much like choosing a rope for climbing: the strongest rope isn’t helpful if it’s too stiff or degrades quickly.

What Are the Strongest Types of Cables?

Cables can be broadly categorized into electrical (e.g., for power transmission) and mechanical (e.g., for structural support). The strongest cables are typically those designed for mechanical applications, where tensile strength is the primary concern. Here’s a comparison of some of the strongest cable types:

Among these, synthetic cables like Dyneema (UHMWPE) are often considered the strongest overall due to their exceptional tensile strength (up to 3500 MPa) and high strength-to-weight ratio—about 10 times stronger than steel by weight. However, for electrical applications, ACSR cables are among the strongest, with the steel core providing significant tensile strength (up to 1000 MPa). Steel wire ropes are the strongest in traditional mechanical applications, but they’re heavy and less corrosion-resistant than synthetics. Choosing the strongest cable is like picking a champion athlete—Dyneema might win for overall strength, but steel excels in specific events.

Where Are the Strongest Cables Used?

The strongest cables are used in applications where high tensile strength and durability are critical, often under extreme conditions. Here are some key examples:

• Wire Rope (Steel): Used in suspension bridges (e.g., Golden Gate Bridge), cranes, elevators, and mining operations, where loads can exceed hundreds of tons. Their high tensile strength (up to 2000 MPa) ensures they can support massive weights.

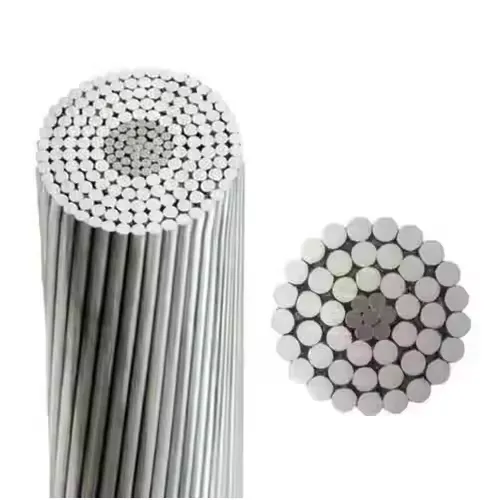

• ACSR: Employed in overhead power lines, especially for long spans (e.g., river crossings), where the steel core provides strength (600–1000 MPa) to prevent sagging while aluminum conducts electricity.
• Aramid Fiber (Kevlar): Found in mooring lines for ships, aerospace applications, and military uses (e.g., parachute lines), thanks to its lightweight strength (up to 3600 MPa) and resistance to stretching.
• Dyneema/Spectra: Used in deep-sea mooring, fishing nets, and high-performance sailing ropes, where its strength (up to 3500 MPa), light weight, and UV resistance make it ideal for harsh marine environments.

These cables shine in their respective fields, much like specialized tools in a workshop—each is the strongest for its intended job, whether lifting a bridge or mooring a ship.

Conclusion

The strongest type of cable depends on the application, but synthetic cables like Dyneema (UHMWPE) stand out with tensile strengths up to 3500 MPa and an exceptional strength-to-weight ratio, making them ideal for mechanical uses like mooring and sailing. For electrical applications, ACSR cables are among the strongest, with steel cores providing up to 1000 MPa of tensile strength for overhead power lines. Steel wire ropes, with strengths up to 2000 MPa, dominate heavy-duty mechanical applications like bridges and cranes. By understanding the context and requirements, you can select the strongest cable for your specific needs, ensuring safety and performance.
