Steel Tape Armoured (STA) and Steel Wire Armoured (SWA) cables are robust power cables designed for environments where mechanical protection is critical, such as underground or industrial settings. While both offer durability, their armouring methods differ, impacting their performance and applications. This article explores these differences through three key sections, using a table to compare their characteristics and analogies to make concepts engaging.
Steel Tape Armoured (STA) Cable: STA cables feature a protective layer of steel tape, typically galvanized, wrapped in a spiral around the cable’s inner sheath. This tape, often applied in two layers with gaps, provides strong resistance to crushing and external pressure, making STA cables suitable for direct burial or confined spaces.

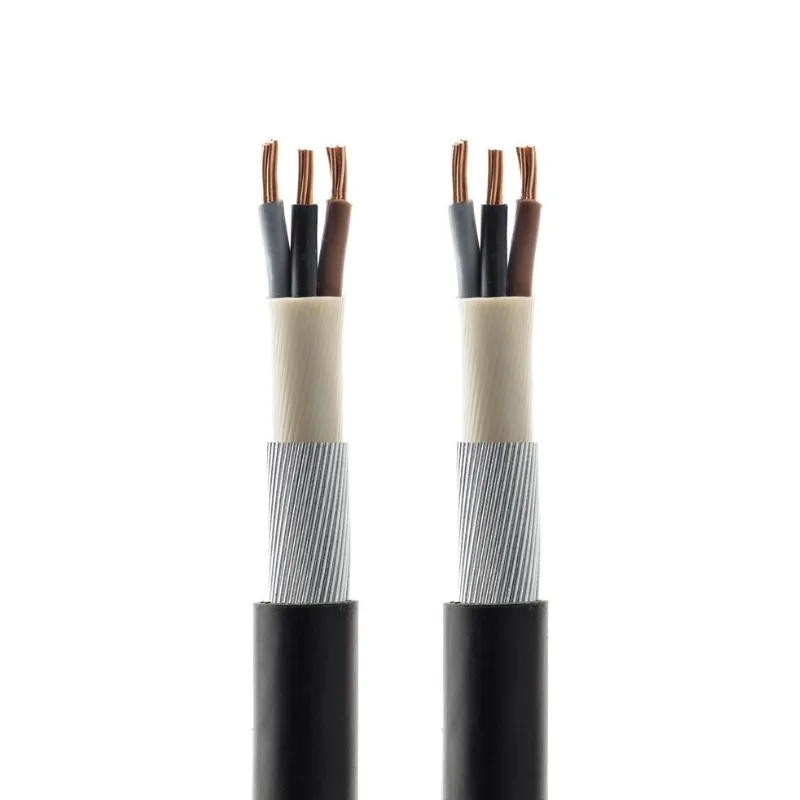

Steel Wire Armoured (SWA) Cable: SWA cables are armoured with galvanized steel wires wound helically around the cable core. These wires, ranging from 0.9mm to over 3mm in diameter, offer high tensile strength and flexibility, ideal for withstanding pulling forces in overhead or vertical installations.
Think of STA cables as a knight’s shield, flat and sturdy against crushing blows, while SWA cables are like a chainmail vest, flexible yet strong against stretching or pulling forces.
STA and SWA cables differ in their armouring construction, mechanical properties, flexibility, cost, and suitability for specific stresses. Below is a detailed comparison:
| Feature | STA Cable | SWA Cable |
|---|---|---|
| Armouring Material | Steel tape (flat, spiral-wrapped) | Steel wires (helically wound) |
| Mechanical Strength | High resistance to radial pressure (crushing) | High resistance to longitudinal tension (pulling) |
| Flexibility | Less flexible, limited to ~120° bends | More flexible, easier to bend |
| Weight | Lighter due to thin tape | Heavier due to multiple wires |
| Cost | Generally cheaper | More expensive due to complex manufacturing |
| Voltage Rating | Low to medium voltage (up to 35 kV) | Low to high voltage (up to 33 kV) |
| Rodent Resistance | Better, tape harder to chew | Less resistant, wires may be gnawed |
STA cables excel in environments with high crushing risks, like tunnels, due to their flat tape armour, which resists radial forces but limits flexibility. SWA cables, with their wire armour, handle tensile stress better, making them suitable for vertical runs or areas with pulling forces, though they’re heavier and costlier. It’s like choosing between a rigid steel plate (STA) for blocking heavy impacts or a flexible steel mesh (SWA) for absorbing stretches and bends.
STA and SWA cables are deployed based on the mechanical and environmental demands of the installation, with each suited to specific scenarios.
Both cables often use XLPE insulation for high-temperature resistance and PVC sheaths for UV stability, but SWA’s flexibility makes it more versatile for complex routing, while STA’s rigidity suits static, high-pressure environments. Choosing between them is like picking a tool for a job—a hammer (STA) for pounding nails or a rope (SWA) for pulling loads.
STA and SWA cables both provide robust mechanical protection for power distribution, but their differences lie in armouring: STA uses steel tape for superior resistance to crushing, ideal for direct burial or indoor settings, while SWA employs steel wires for tensile strength and flexibility, suited for vertical or overhead installations. STA cables are lighter and cheaper but less flexible, while SWA cables are heavier, costlier, and better for dynamic routing. By assessing the installation’s mechanical stresses—radial pressure versus longitudinal tension—you can select the right cable for safety, reliability, and performance.
