Cables are categorized into numerous types based on their design, materials, application, and performance characteristics. This variety ensures that there is a cable solution for virtually every electrical and electronic need, from power transmission to data communication and beyond.
Source:Wikipedia - Electrical cable
How are Cables Classified by Voltage?
Voltage classification is a fundamental way to categorize cables, indicating their suitability for different power levels:
-
Low Voltage Cables (LV): Typically rated for up to 1kV. These are commonly used in residential buildings, for small appliances, and control circuits.
-
Medium Voltage Cables (MV): Ranging from 1kV to 35kV. MV cables are used for power distribution in urban networks, commercial buildings, and industrial plants.
-
High Voltage Cables (HV): Rated above 35kV, often up to several hundred kV. HV cables are essential for long-distance power transmission in national grids and large-scale infrastructure.
-
Extra-High Voltage Cables (EHV): Designed for the highest voltage levels, exceeding 230kV and going up to 1000kV or more. EHV cables are used for very long-distance, high-capacity power transmission.
What Types of Cables are Used for Power Transmission?
Power cables are specifically engineered to carry electrical energy, and they come in several types:
-
Single-Core Cables: Consist of a single conductor, typically used for lower current applications or as part of a multi-cable system for higher power.
-

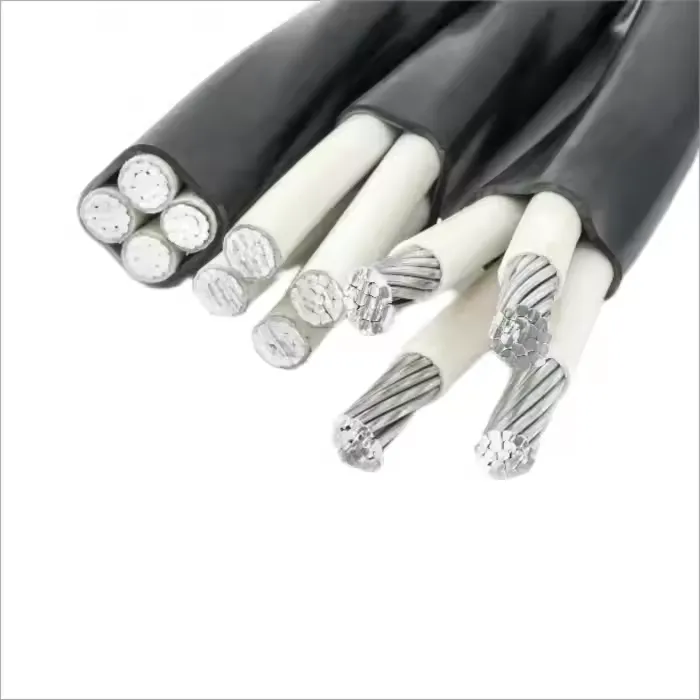

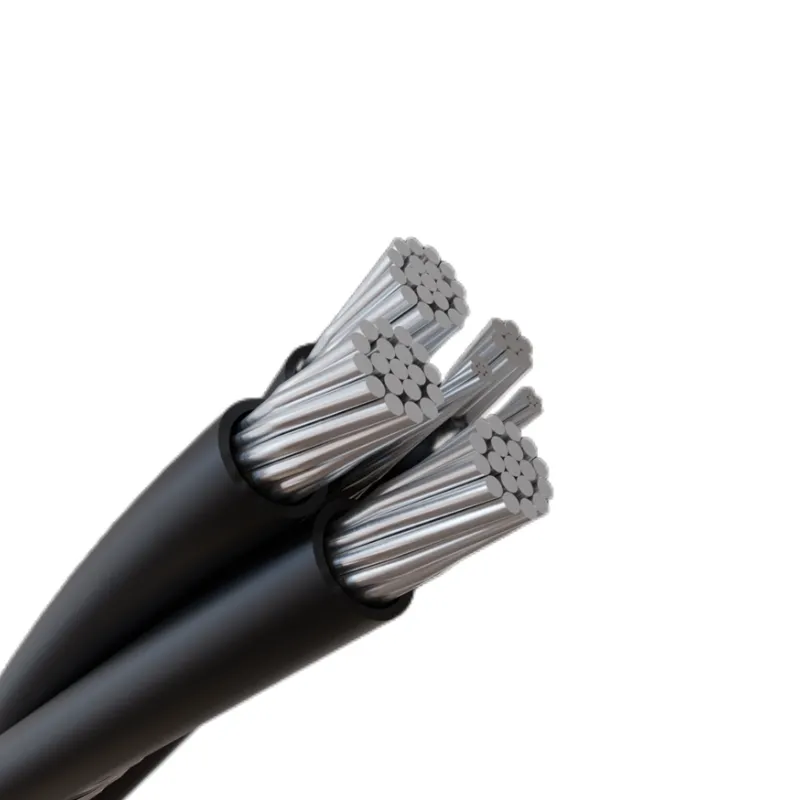

Multi-Core Cables: Contain multiple conductors within a single jacket, often used for three-phase power systems and applications requiring multiple circuits.
-

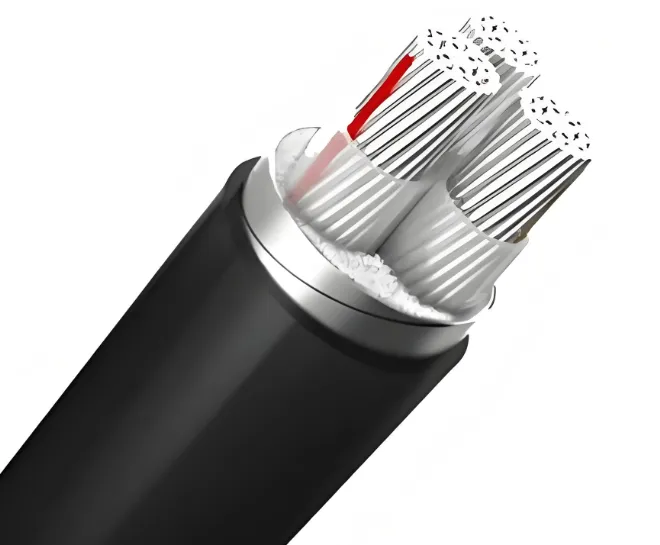

Armored Cables: Feature an additional layer of mechanical protection, such as steel wire or tape armor, making them suitable for direct burial, harsh environments, and industrial applications.
-
Submarine Cables: Specialized for underwater power transmission, designed to withstand harsh marine conditions and long distances.
-

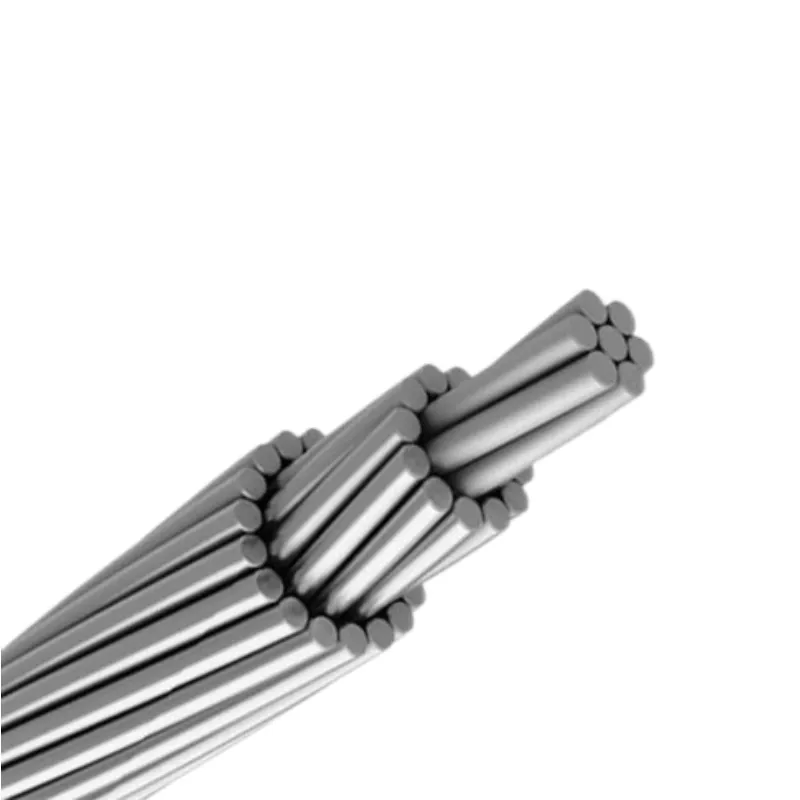

Overhead Cables: Used for aerial power lines, often uninsulated or minimally insulated, strung between utility poles or pylons.
What are the Different Types of Communication Cables?
Communication cables are designed to transmit signals for telecommunications and data networks. Key types include:
-
Twisted Pair Cables: Comprise pairs of wires twisted together to reduce electromagnetic interference (EMI). These include:
-
Unshielded Twisted Pair (UTP): Commonly used in Ethernet cables for LANs. (Wikipedia - Twisted pair)
-
Shielded Twisted Pair (STP): Includes a foil or braid shield for enhanced EMI protection, used in environments with high electrical noise.
-
Coaxial Cables: Feature a central conductor surrounded by an insulating layer, a conductive shield, and an outer jacket. Used for cable TV, internet, and radio frequency (RF) signal transmission. (Wikipedia - Coaxial cable)
-
Fiber Optic Cables: Transmit data as light pulses through glass or plastic fibers. They offer extremely high bandwidth, long-distance transmission, and immunity to EMI. Types include single-mode and multi-mode fibers. (Wikipedia - Optical fiber cable)
What are Specialized Cables for Specific Applications?
Beyond general power and communication, there are specialized cables designed for particular environments or functions:
-
Flexible Cables: Designed to withstand repeated bending and flexing, used in robotics, moving machinery, and portable devices.
-
High-Temperature Cables: Made with materials that can operate at elevated temperatures, used in industrial furnaces, cooking equipment, and high-temperature sensors.
-
Low Smoke Zero Halogen (LSZH) Cables: Formulated to produce minimal smoke and no halogen when burned, enhancing safety in enclosed spaces and public buildings.
-
Solar Cables: Specifically for photovoltaic systems, resistant to UV radiation, moisture, and extreme temperature variations.
-
Marine Cables: Engineered to withstand the harsh marine environment, including saltwater, mechanical stress, and continuous submersion, used in ships, offshore platforms, and underwater installations.
Source: ABB - Special cables for extreme conditions
Source: WebWire - Top 10 Types of Speciality Wire and Cable
How do Cable Standards and Regulations Classify Cables?
Standards and regulations provide frameworks for cable classification to ensure safety, performance, and interoperability. Key classifications include:
-
UL (Underwriters Laboratories) Standards: North American safety standards that classify cables based on fire resistance, voltage rating, and application suitability.
-
IEC (International Electrotechnical Commission) Standards: Global standards that classify cables based on construction, performance, and test methods, ensuring international compatibility.
-
NEC (National Electrical Code): In the US, the NEC classifies cables based on application, installation methods, and safety requirements for electrical wiring.
-
RoHS (Restriction of Hazardous Substances) Compliance: Classifies cables based on the absence of hazardous materials like lead, mercury, and cadmium, important for environmental and health considerations. (Wikipedia - Restriction of Hazardous Substances Directive)
Understanding the different types of cables and their classifications is essential for selecting the appropriate cable for any given application, ensuring safety, efficiency, and reliability in electrical and electronic systems.1
