Designing Ultra-Flexible Control Cables for Robotic Arms: A Deep Dive into Innovation

In the fast-evolving world of industrial robotics, the demand for reliable, durable, and flexible components is higher than ever. One critical piece of the puzzle is the control cable—the unsung hero that ensures robotic arms move precisely and efficiently. A fascinating study published in the October 2024 issue of Wire & Cable (Issue No. 5, 2024) explores the design and development of ultra-flexible control cables tailored for robotic manipulators. This article breaks down the key findings of that research, explains why it matters, and offers insights into how such innovations could shape the future of automation. Whether you’re a tech enthusiast or a business owner looking to optimize your website’s visibility, this piece offers valuable takeaways—plus a sprinkle of analysis to keep things interesting.

What’s the Big Deal About Robotic Arm Cables?

Robotic arms are the backbone of modern manufacturing, from assembling cars to packaging goods. These mechanical marvels rely on control cables to transmit power and signals, allowing them to perform tasks with human-like precision. However, not just any cable will do. The study highlights that robotic arms need cables that can bend, twist, and stretch repeatedly without breaking down—think of them as the flexible muscles of a robot. The researchers, affiliated with Guangdong Rifeng Cable Co., Ltd., set out to design a cable that combines flexibility, durability, and performance, ensuring robotic arms can work accurately in diverse environments.

The paper kicks off by explaining why this matters. Robotic arms are programmed to tackle specific tasks, blending the strengths of human intelligence with machine efficiency. To keep them running smoothly, their cables must withstand constant movement and harsh conditions while maintaining electrical stability. This is where the ultra-flexible control cable comes in—a game-changer for industries relying on automation.

Key Highlights of the Cable Design

The researchers didn’t just throw together a random cable and call it a day. They carefully considered materials, structure, and testing to create something exceptional. Here’s a rundown of the standout points:

1. Material Selection: TPEE vs. TPV vs. TPE
   • The team compared three common insulation materials: Thermoplastic Polyester Elastomer (TPEE), Thermoplastic Vulcanizate (TPV), and Thermoplastic Elastomer (TPE). They looked at factors like heat resistance, tensile strength, and flexibility.
   • TPEE emerged as a strong contender with a heat resistance of 110°C, tensile strength above 35 MPa, and elongation over 400%. TPV and TPE, while flexible, didn’t quite match TPEE’s balance of durability and performance (see Table 1 below).
   • Why does this matter? The right material ensures the cable can handle high temperatures and mechanical stress without losing its shape or function.
2. Outer Diameter and Sheath Design

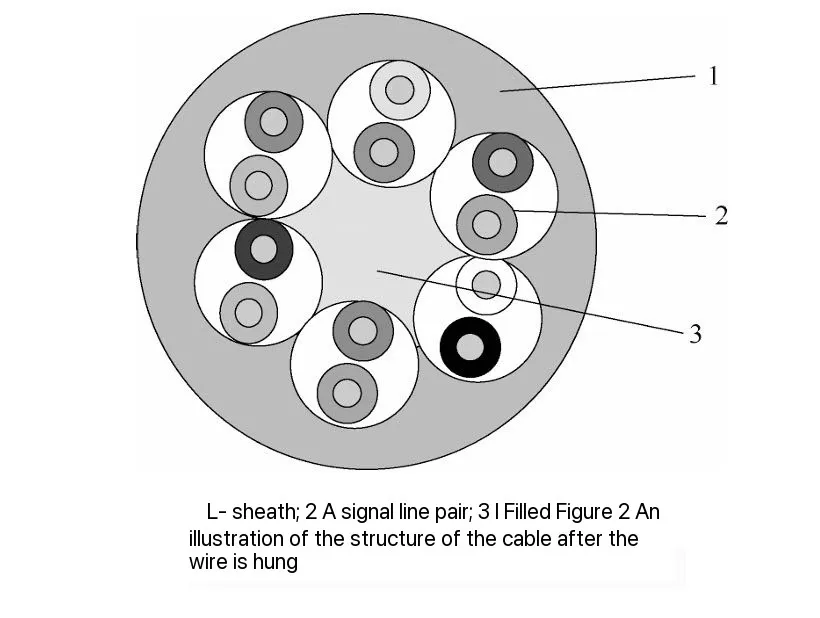

   • The cable’s outer diameter was calculated using the formula: Dₓ = Dₚ + 2t, where Dₓ is the finished cable diameter, Dₚ is the core diameter, and t is the sheath thickness. For a 6x2x0.2 mm² non-shielded control cable, they designed a sheath thickness of 1.0 mm, resulting in a total diameter of 6.92 mm.
   • A uniform sheath thickness is crucial for durability and electrical consistency, protecting the inner conductors from wear and tear.
3. Flexibility Testing: Pushing the Limits
   • The team put their cable through three grueling tests:
     • Cyclic Bending Test: The cable was bent back and forth at ±90° angles 8 million times. It passed with no short circuits and less than 10% change in conductor resistance.
     • Torsion Test: Twisted at ±180° for 8 million cycles, the cable maintained signal integrity and structural stability.
     • Reciprocating Drag Test: Dragged over a 450-550 mm path at 10.2 m/s for 10 million cycles, it still transmitted signals perfectly.
   • These tests prove the cable can endure the repetitive motions of a robotic arm without failing—a must for long-term reliability.
4. Performance Metrics
   • The cable’s insulation materials were also compared to alternatives like TPU and PVC. TPU offered a wide operating temperature range (-40°C to 90°C) and excellent abrasion resistance, while PVC lagged with a narrower range (-15°C to 70°C) and lower flexibility.

Table 1: Comparison of Insulation Materials

Source: Adapted from “Wire & Cable,” Oct. 2024, No. 5.

Why This Research Stands Out

This isn’t just another technical paper—it’s a blueprint for innovation. The researchers tackled real-world challenges faced by industries using robotic arms. Their focus on ultra-flexibility addresses a common pain point: standard cables often wear out quickly under constant motion, leading to downtime and costly repairs. By selecting TPEE and rigorously testing the design, they’ve created a product that promises longevity and reliability.

The testing process is particularly impressive. Eight to ten million cycles of bending, twisting, and dragging simulate years of heavy use. For a business owner, this translates to fewer maintenance headaches and more uptime. For a robotics engineer, it means a dependable component that won’t compromise precision. The attention to detail—like ensuring uniform sheath thickness—shows a commitment to quality that sets this study apart.

Analysis: Strengths and Room for Growth

Let’s break this down further. The choice of TPEE as an insulation material is a smart move. It strikes a balance between flexibility and strength, outperforming TPV and TPE in key areas like tensile strength. However, TPV’s higher heat resistance (125°C) suggests it might be better for extreme environments—something the researchers could explore in future iterations. TPU, with its broader temperature range and abrasion resistance, also deserves a closer look for applications beyond standard robotic arms, like outdoor or heavy-duty machinery.

The testing methodology is a major strength. By simulating millions of cycles, the team provides concrete evidence of durability—data that manufacturers can trust. That said, the paper could benefit from more context on cost. High-performance materials like TPEE might drive up production expenses, which could limit adoption in budget-conscious industries. A cost-benefit analysis would add practical value for decision-makers.

Another area for improvement is real-world application data. While lab tests are thorough, field results from actual robotic arm deployments would strengthen the case. How does this cable perform in a noisy factory or a dusty warehouse? These insights could bridge the gap between theory and practice, making the research even more compelling.

Why This Matters for Your Business

If you’re running a website tied to robotics, manufacturing, or industrial tech, this research is gold for SEO. Keywords like “ultra-flexible control cables,” “robotic arm durability,” and “TPEE insulation” tap into niche but growing search trends. By crafting content around these terms, you can attract engineers, procurement managers, and tech enthusiasts looking for cutting-edge solutions. Pair this with a blog post or product page, and you’re boosting your site’s relevance and authority.

Beyond SEO, the innovation itself has broader implications. As automation expands into small businesses and new sectors—like healthcare or logistics—reliable components like this cable will be in demand. Companies adopting such technology could gain a competitive edge, delivering faster, more reliable services while cutting maintenance costs.

The Future of Flexible Cables

This study isn’t the end of the road—it’s a stepping stone. The researchers hint at ongoing refinements, and the industry is ripe for more breakthroughs. Imagine cables that self-diagnose wear or adapt to extreme conditions using smart materials. As robotics becomes more integrated into daily life, from home assistants to surgical robots, the need for ultra-flexible, high-performance cables will only grow.

Conclusion

The Wire & Cable study offers a glimpse into the future of robotic arm technology through the lens of a meticulously designed control cable. By blending smart material choices (hello, TPEE!) with rigorous testing, the team has delivered a solution that’s both practical and forward-thinking. It’s a win for manufacturers, a boon for robotics, and a great hook for anyone looking to optimize their website with fresh, technical content.

So, what’s the takeaway? Flexibility isn’t just a buzzword—it’s the key to keeping robots moving and industries thriving. Whether you’re here for the tech or the SEO potential, this research proves that small components can make a big impact.
