Self-supporting ABC Cable SIP-5ng AsXSn (LV, PVC/PE)

Saudi Arabia UAE Markets Low Voltage Self-supporting Wire SIP-5ng AsXSn ABC Cable PVC/PE Jacket

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Insulation Material	xlpe
Application	Construction
Conductor Material	Aluminum
Jacket	/

Other attributes

Place of Origin	Henan, China
Working Temperature	90°C, 70°C
Rated Voltage	0.6/1kV
Brand Name	Jianyun
Model Number	Aerial Bundled Cables to IEC 60502
Type	LOW VOLTAGE
Product name	Low Voltage Self-supporting Wire SIP-5ng AsXSn ABC Cable
Conductor	aluminium conductor
Color	Balck
Insulation	PE
Certificate	CCC/CE
Rated voltage	0.6/1KV
MOQ	1000
Standard	IEC 60502
Package	Wooden Drum
Usage	Power Transmission Lines

PRODUCT SHOW

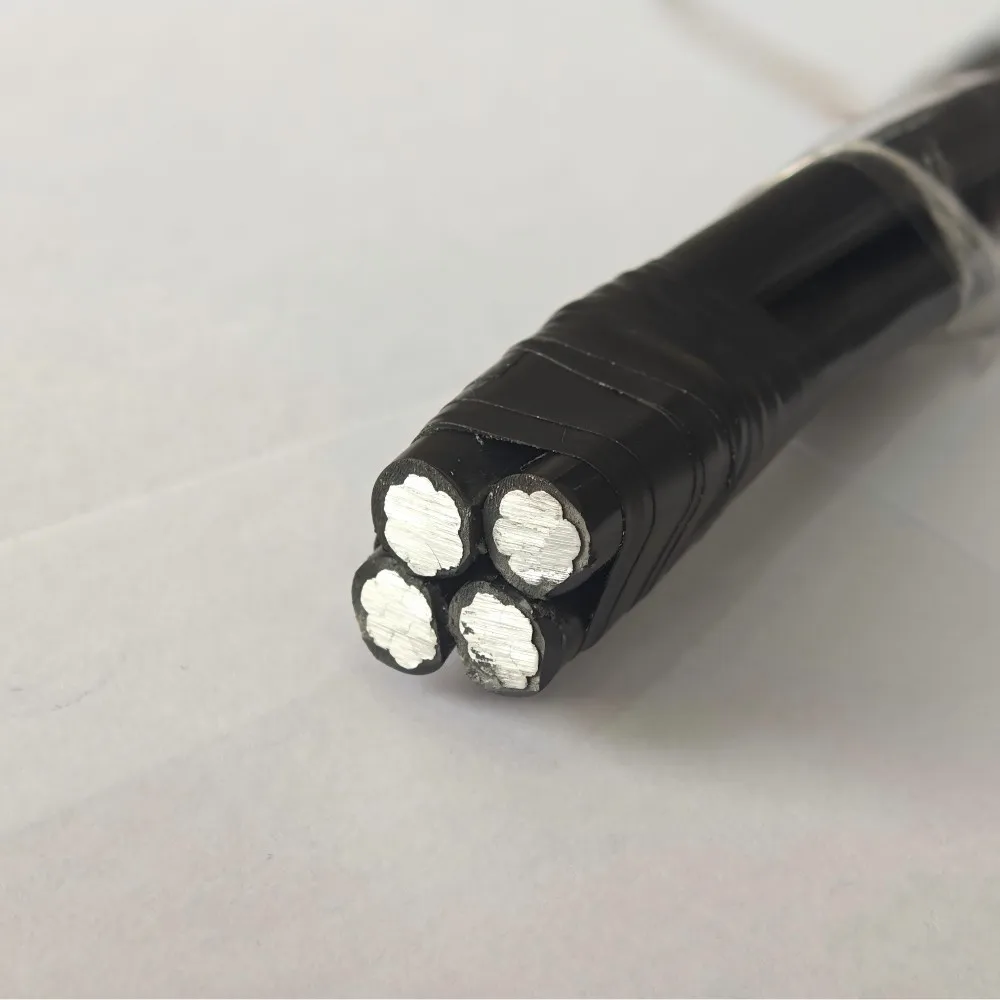

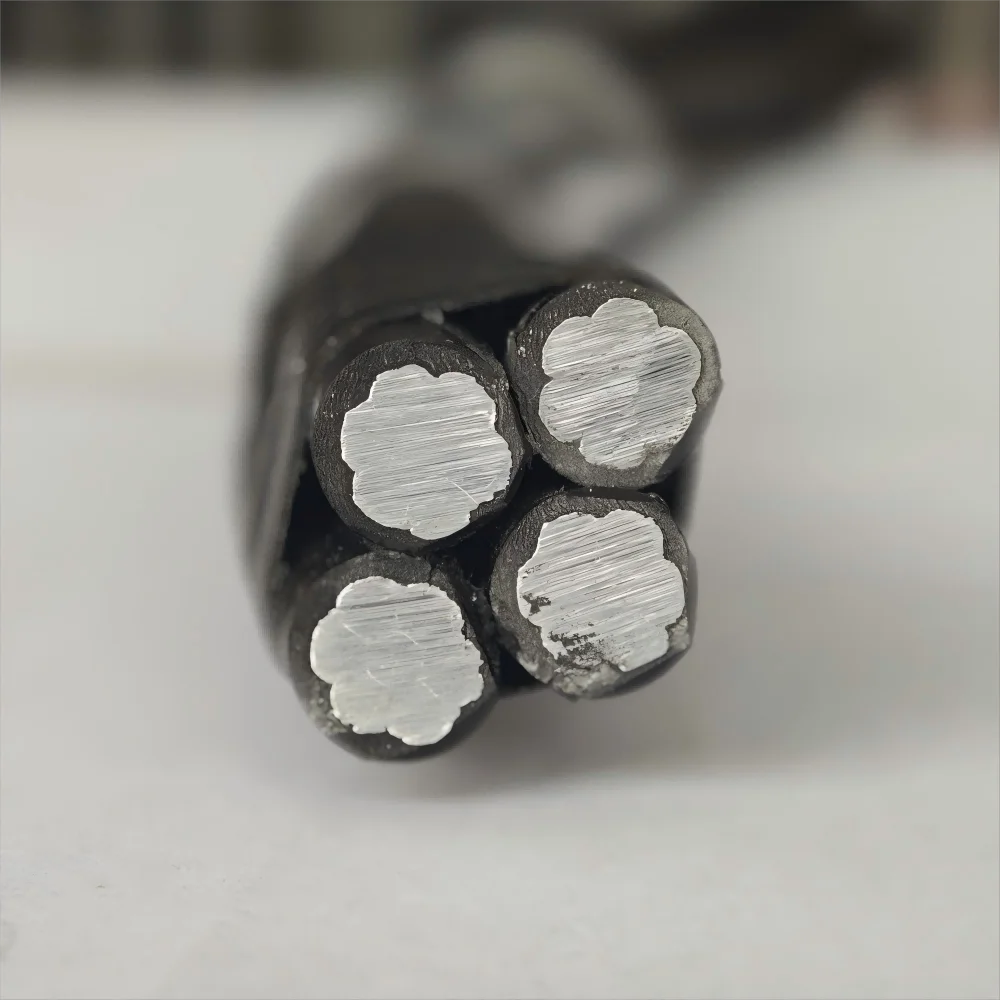

Low Voltage Self-supporting Wire SIP-5ng AsXSn ABC Cable

SIP-5ng (AsXSn) – self-supporting insulated wire with an aluminum conductive core, insulated from a flame retardant polymer composition, thermoplastic, light-stabilized cross-linked polyethylene. The insulating material is highly resistant to sunlight, (ultraviolet) and ozone.

Construction:
Twisting: insulated conductive conductors are twisted with a twisting pitch of not more than 45 cm. The twisting has a right direction.
Core material: round aluminum, multi-wire sealed. The wire is made with a cross section of 16-120 mm2. In this case, if the nominal cross-section does not exceed 25 mm2, a right-sided twisting is used, for large sizes – a left-sided one.
Placeholder: none
Screen: none
Armor: none
Core: steel wire
Insulation: light-stabilized cross-linked polyethylene, non-combustible silane-crosslinkable composition based on a copolymer of polyethylene with vinyl acetate.

PRODUCT DETAIL

Wire nomenclature	Nominal conductor diameter, mm	Outer wire diameter, mm	Estimated weight of 1 km of wire, kg	Minimum breaking strength of load-bearing conductors, kN, not less	Nominal insulation thickness, mm
Wire SIP-5ng 2×16	4,8	16,8	138,1	5	1,2
Wire SIP-5ng 4×16	4,8	20,2	276,2	9,8	1,2
Wire SIP-5ng 4×25	6	23,4	400,5	15,4	1,2
Wire SIP-5ng 4×35	7	26,1	521,2	21,5	1,2
Wire SIP-5ng 4×50	8,4	30,9	730,8	30,7	1,4
Wire SIP-5ng 4×70	9,8	34,6	983,1	43	1,6
Wire SIP-5ng 4×95	11,6	39,9	1304,6	58,4	1,7
Wire SIP-5ng 4×120	13	43,6	1624,4	73,7	1,7
