Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.
Home / Product / Aerial Bundle Cable / LV Aluminum Overhead ABC Cable (XLPE/PVC Jacket)
Vietnam Thailand Myanmar Overhead Low Voltage Aluminum Conductor XLPE Insulation Aerial Bundle Cable ABC Cable PVC Jacket
|
Insulation Material |
xlpe |
|
Application |
welding mahcine |
|
Conductor Material |
Aluminum |
|
Jacket |
PVC |
|
Place of Origin |
Henan, China |
|
Working Temperature |
90°C, 70°C |
|
Rated Voltage |
0.6 kV, 1 kV |
|
Rated Current |
16A, 30A |
|
Brand Name |
JIANYUN CABLE |
|
Type |
LOW VOLTAGE |
|
Selling units |
Single item |
|
Single package size |
XX cm |
|
Single gross weight |
kg |

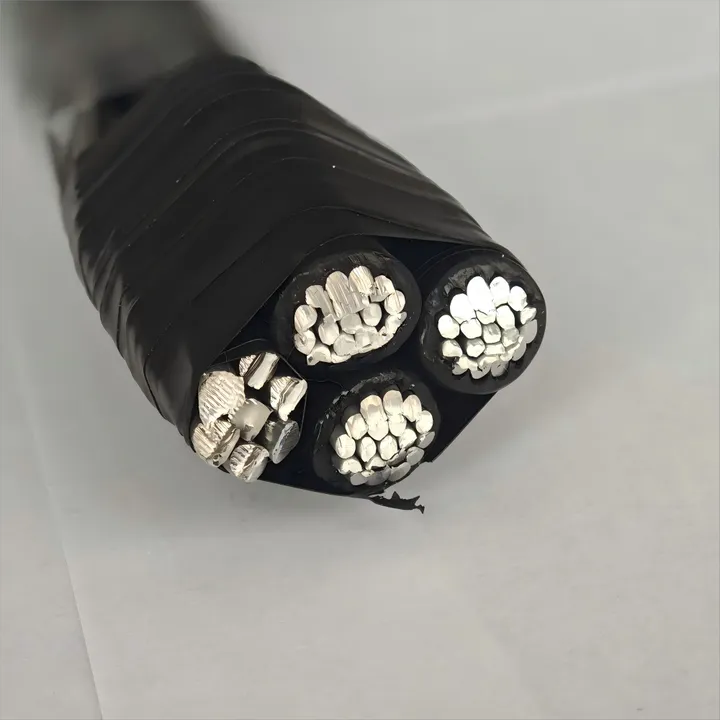

Construction
Phase Conductor:aluminium conductor, round stranded compressed.
Neutral Conductor:Alloy aluminium conductor , round stranded compressed (RM).
Insulation：PE
Standard
IEC 60502
Application
The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.
PRODUCT DETAIL
|
Number of cores x nominal cross section |
min. breaking load of conductor strand |
Current rating in the air |
Outer diameter |
Total weight |
|
mm2 |
kN |
A |
mm |
kg/km |
|
1x16+1x 25 RM |
6.4 |
61 |
15.3 |
160 |
|
3x16+1x 25 RM |
6.4 |
61 |
19 |
290 |
|
3x25+1x 25 RM |
6.4 |
84 |
23.2 |
400 |
|
3x35+1x 25 RM |
6.4 |
104 |
25.6 |
500 |
|
3x50+1x 35 RM |
8.9 |
129 |
30 |
680 |
|
3x70+1x 50 RM |
12.1 |
167 |
34.9 |
920 |
|
3x95+1x 70 RM |
18 |
209 |
40.6 |
1270 |
|
3x120+1x 70 RM |
18 |
246 |
44.1 |
1510 |
|
3x150+1x 95 RM |
24.2 |
283 |
49.2 |
1870 |
|
3x185+1x120 RM |
30.8 |
332 |
54.9 |
2340 |
|
3x25+1x25+1x16 RM |
6.4 |
84 |
23.2 |
470 |
|
3x35+1x25+1x16 RM |
6.4 |
104 |
25.6 |
560 |
|
3x50+1x35+1x16 RM |
8.9 |
129 |
30 |
740 |
|
3x70+1x50+1x16 RM |
12.1 |
167 |
34.9 |
980 |
|
3x95+1x70+1x16 RM |
18 |
209 |
40.6 |
1330 |
|
3x120+1x70+1x16 RM |
18 |
246 |
44.1 |
1580 |
|
3x150+1x95+1x16 RM |
24.2 |
283 |
49.2 |
1940 |
|
3x185+1x120+1x16 RM |
30.8 |
332 |
54.9 |
2410 |
