Aerial Bundle Cable

Aerial bundle cable (ABC) is a type of electrical power cable designed for overhead power lines. It consists of multiple individual conductors bundled together, with each conductor separately insulated. This design improves safety, reduces electrical interference, and enhances power quality compared to traditional bare conductor lines.

600/1000V ABC –Aerial Bundled Cables to AS/NZS 3560.1 (AL/XLPE)

These cables utilize an aluminum conductor with a cross-linked polyethylene (XLPE) insulation, providing high durability and electrical performance. The XLPE insulation ensures excellent thermal stability, resistance to electrical stress, and protection against environmental factors such as moisture, UV radiation, and mechanical impact.

Send Email Get Best Price

Details

Construction

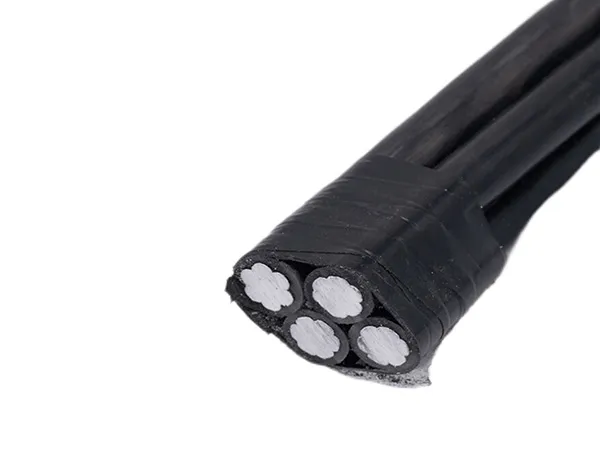

Phase Conductor:The conductors shall be of aluminium wires and are compacted circular stranded (RM).

Insulation：XLPE

Standard

AS/NZS 3560.1

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Product Paramenters

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm2	kN	A	mm	kg/km
2x16 RM	4.4	78	15	140
2x25 RM	7	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550
4x16 RM	8.8	74	18.1	290
4x25 RM	14	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84	280	43.9	2020
