CENELEC HD 626 ABC Cable (Aluminum XLPE, 16-35mm2)

Aerial Bundled Twisted CENELEC HD 626 Standard Aluminum XLPE Cable 4x16 4x25 4x35 ABC Cable

Send Email Get Best Price

Details

Key Attribute	Value
Insulation Material	PE / XLPE/ XLPE
Application	Overhead
Conductor Material	Aluminum
Jacket	PE / PVC / XLPE
Place of Origin	Henan, China
Working Temperature	90°C
Rated Voltage	0.6 kV, 15 kV, 6 KV, 12 V, 25 V
Rated Current	10A, 20A, 16A, 30A
Brand Name	JYXL
Model Number	ABC Cable
Type	LOW VOLTAGE
Size	multi-core
Product name	NFC 33-209 Standard ABC Cable
Conductor	Alulminum
Insulation	XLPE PE PVC
Certificate	ISO9001/ISO14001 /CCC
Rated voltage	0.6/1 Kv
Color	Balck
Core	multi-core
Sheath	PVC / XLPE Shealth
Selling Units:	Single item
Single package size:	1X1X1 cm
Single gross weight:	1.000 kg

PRODUCT SHOW

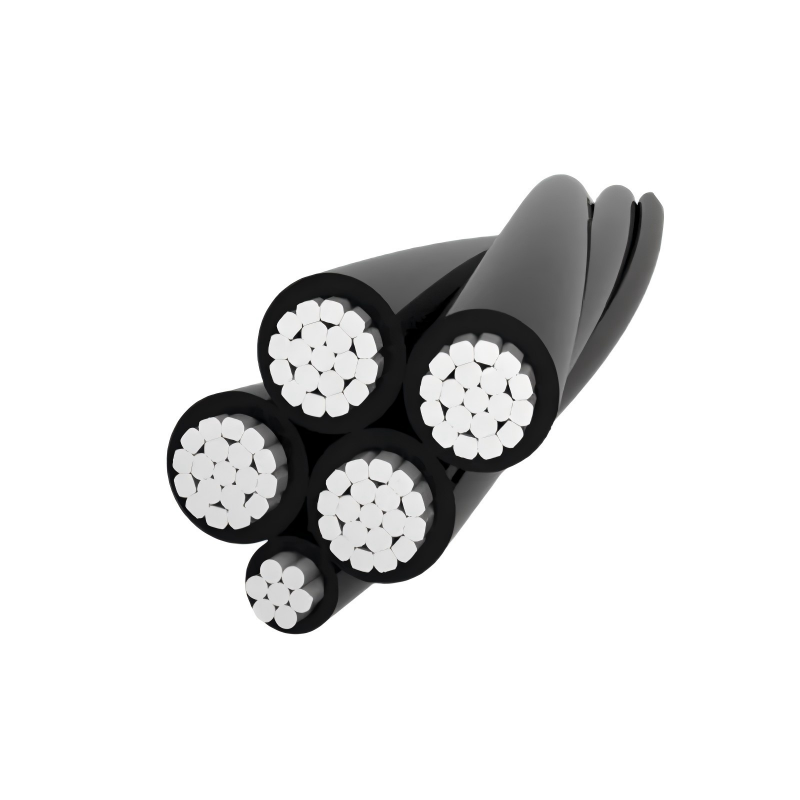

600/1000V ABC –Aerial Bundled Cables to NFC 33-209 (AL/XLPE)

Construction

Phase Conductor:Aluminium conductor, round stranded compressed (RM).

Neutral Conductor:Alloy aluminium conductor , round stranded compressed (RM).

Insulation：XLPEStandard

NFC 33-209

Application
The aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl.

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × Ø of cable

PRODUCT DETAIL

Number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm²	Ohm/km	kN	A	mm	kg/km
2x10 RM	3.08	1.5	38	12.8	93
4x10 RM	3.08	1.5	38	15.4	183
2x16 RM	1.91	2.3	72	14.8	129
2x16 RN + 2x1.5 RE	1.910/12.100	2.3	72	14.8	176
4x16 RM	1.91	2.3	72	17.8	257
4x16 RN + 2x1.5 RE	1.910/12.100	2.3	72	17.8	304
2x25 RM	1.2	3.8	107	18	202
2x25 RM + 2x1,5 RE	1.200/12.100	3.8	107	18	249
4x25 RM	1.2	3.8	107	21.7	404
4x25 RM + 2x1,5 RE	1.200/12.100	3.8	107	21.7	451
2x35 RM	0.868	5.2	132	20.8	269
2x35 RM + 2x1,5 RE	0.868/12.100	5.2	132	20.8	316
4x35 RM	0.868	5.2	132	25.1	539
4x35 RM + 2x1,5 RE	0.868/12.100	5.2	132	25.1	586
2x50 RM	0.641	7.6	165	23.4	352
2x50 RM + 2x1,5 RE	0.641/12.100	7.6	165	23.4	399
1x54.6 RM + 3x25 RM	0.630/1.200	3.8	107	21.7	507
1x54.6 RM + 3x25 RM + 1x16 RM	0.630/1.200/1.910	3.8/2.3	107/72	24.3	573
1x54.6 RM + 3x25 RM + 2x16 RM	0.630/1.200/1.910	3.8/2.3	107/72	29.7	639
1x54.6 RM + 3x25 RM + 3x16 RM	0.630/1.200/1.910	3.8/2.3	107/72	31.1	705
1x54.6 RM + 3x35 RM	0.630/0.868	5.2	132	25.1	615
1x54.6 RM + 3x35 RM + 1x16 RM	0.630/0.868/1.910	5.2/2.3	132/72	28.1	680
1x54.6 RM + 3x35 RM + 2x16 RM	0.630/0.868/1.910	5.2/2.3	132/72	34.3	748
1x54.6 RM + 3x35 RM + 3x16 RM	0.630/0.868/1.910	5.2/2.3	132/72	35.9	814
1x54.6 RM + 3x35 RM + 1x25 RM	0.630/0.868/1.200	5.2/3.8	132/107	28.1	714
1x54.6 RM + 3x50 RM	0.630/0.641	7.6	165	28.2	741
1x54.6 RM + 3x50 RM + 1x16 RM	0.630/0.641/1.910	7.6/2.3	165/72	31.6	806
1x54.6 RM + 3x50 RM + 2x16 RM	0.630/0.641/1.910	7.6/2.3	165/72	38.6	875
1x54.6 RM + 3x50 RM + 3x16 RM	0.630/0.641/1.910	7.6/2.3	165/72	40.4	940
1x54.6 RM + 3x50 RM + 1x25 RM	0.630/0.641/1.200	7.6/3.8	165/107	31.6	841
1x54.6 RM + 3x70 RM	0.630/0.443	10.2	205	33	950
1x54.6 RM + 3x70 RM + 1x16 RM	0.630/0.443/1.910	10.2/2.3	205/72	37	1014
1x54.6 RM + 3x70 RM + 2x16 RM	0.630/0.443/1.910	10.2/2.3	205/72	45.2	1083
1x54.6 RM + 3x70 RM + 3x16 RM	0.630/0.443/1.910	10.2/2.3	205/72	47.3	1148
1x54.6 RM + 3x70 RM + 1x25 RM	0.630/0.443/1.200	10.2/3.8	205/107	37	1048
1x54.6 RM + 3x70 RM + 2x25 RM	0.630/0.443/1.200	10.2/3.8	205/107	45.2	1150
1x54.6 RM + 3x70 RM + 3x25 RM	0.630/0.443/1.200	10.2/3.8	205/107	47.3	1250
1x54.6 RM + 3x95 RM	0.630/0.320	13.5	240	37.4	1176
1x54.6 RM + 3x95 RM + 1x16 RM	0.630/0.320/1.910	13.5/2.3	240/72	41.9	1243
