ACSR Conductor BS 215 Part 2 Standard

ACSR conductors are recognized for their record of economy, dependability and favorable strength/weight ratio. ACSR conductors combine the light weight and good conductivity of aluminum with the high tensile strength and ruggedness of steel.

In line design, this can provide higher tensions, less sag and longer span lengths than obtainable with most other types of overhead conductors.

Send Email Get Best Price

Details

ACSR, Aluminum Conductor Steel Reinforced

ACSR APPLICATION

Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR conductor used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.

FEATURES :

In line design, this can provide higher tensions, less sag and longer span lengths than obtainable with most other types of overhead conductors.

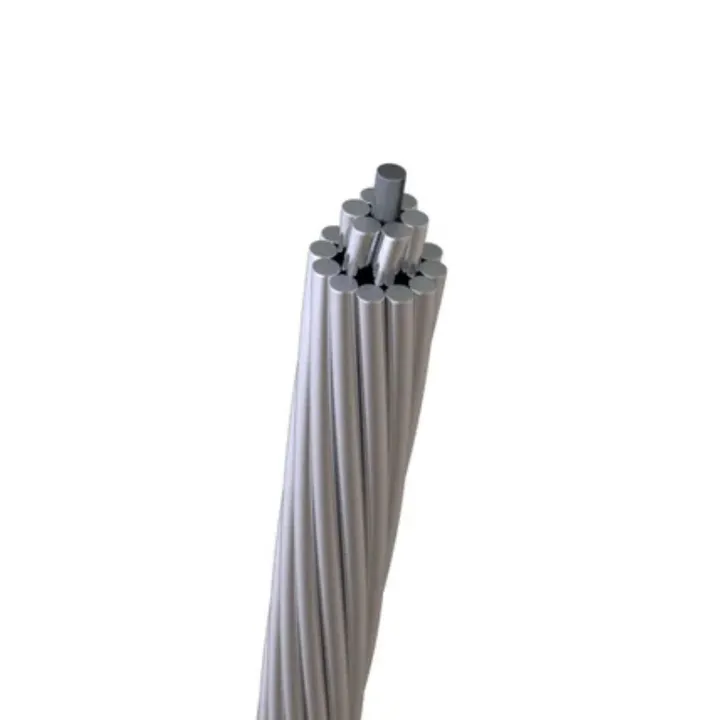

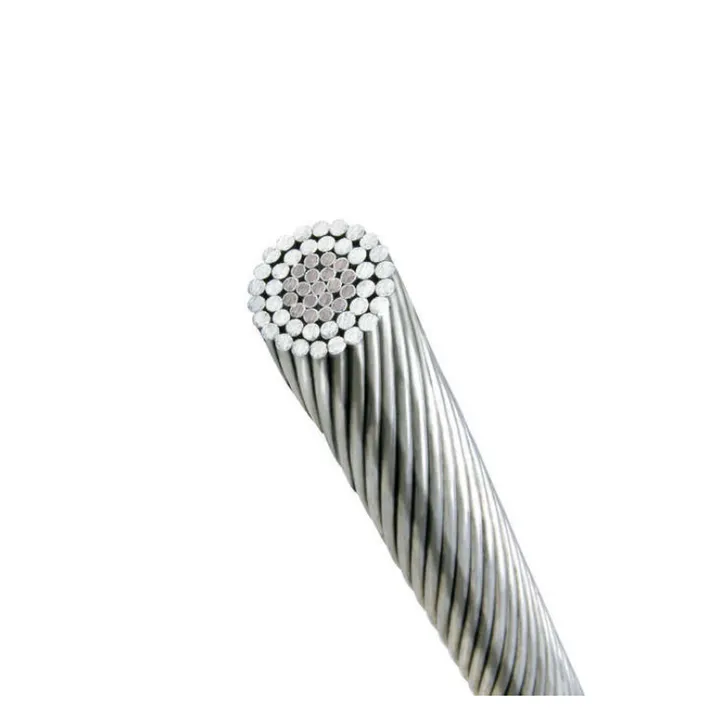

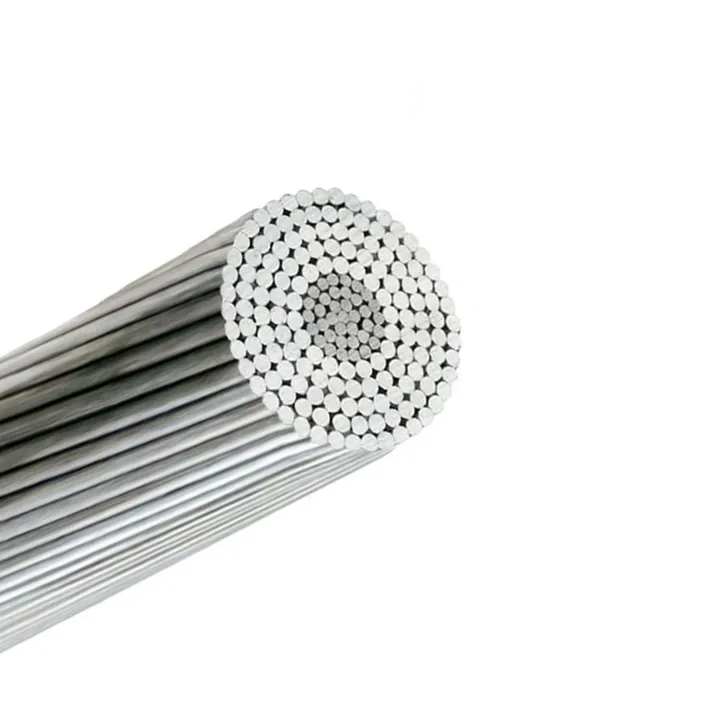

The steel strands are added as mechanical reinforcement. The cross-sections above illustrate some common stranding.

Product Paramenters

Code Name	Area				Stranding		Approx.
	Area				Stranding		Overall
	Nominal	Alum.	Steel	Total	Alum.	Steel	Diameter
	Alum.	Alum.	Steel	Total	Alum.	Steel	Diameter
	mm2	mm2	mm2	mm2	mm	mm	mm
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	4.5
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	6.33
Gopher	25	26.25	4.37	30.62	6/2.36	1/2.36	7.08
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	7.77
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	8.37
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	9
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	10.05
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	10.98
Skunk	60	63.27	36.93	100.3	12/2.59	7/2.59	12.95
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	11.97
Horse	70	73.37	42.8	116.17	12/2.79	7/2.79	13.95
Racoon	75	79.2	13.2	92.4	6/4.10	1/4.10	12.3
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	12.66
Cat	90	95.4	15.9	111.3	6/4.50	1/4.50	13.5
Hare	100	105	17.5	122.5	6/4.72	1/4.72	14.16
Dog	100	105	13.5	118.5	6/4.72	7/1.57	14.15
Hyena	100	105.8	20.44	126.2	7/4.39	7/1.93	14.57
Leopard	125	131.3	16.8	148.1	6/5.28	7/1.75	15.81
Coyote	125	132.1	20.1	152.2	26/2.54	7/1.91	15.89
Cougar	125	130.3	7.25	137.5	18/3.05	1/3.05	15.25
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	16.52
Wolf	150	158	36.9	194.9	30/2.59	7/2.59	18.13
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	16.75
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	19.53
Caracal	175	184.2	10.3	194.5	18/3.61	1/3.61	18.05
Panther	200	212	49.5	261.5	30/3.00	7/3.00	21
Lion	225	238.5	55.6	294.2	30/3.18	7/3.18	22.26
Bear	250	264	61.6	325.6	30/3.35	7/3.35	23.45
Goat	300	324.3	75.7	400	30/3.71	7/3.71	25.97
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	27.93
Antelope	350	373.1	48.4	421.5	54/2.97	7/2.97	26.73
Bison	350	381.8	49.5	431.3	54/3.00	7/3.00	27
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	19.3
Deer	400	429.3	100.2	529.5	30/4.27	7/4.27	29.89
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	28.62
Elk	450	477	111.3	588.3	30/4.50	7/4.50	31.5
Camel	450	475.2	61.6	536.8	54/3.35	7/3.35	30.15
Moose	500	528.7	68.5	597.2	54/3.53	7/3.53	31.77
