AAC All Aluminum Conductor IEC 61089 Standard

AAC All Aluminum Conductor IEC 61089 Standard

All aluminum conductor (AAC) cables are designed to provide efficient electrical conductivity and mechanical strength for overhead power transmission and distribution. According to the IEC 61089 standard, AAC cables are constructed with high-purity aluminum, which offers excellent corrosion resistance and is lightweight, making them suitable for use in various environmental conditions.

Send Email Get Best Price
  • Details

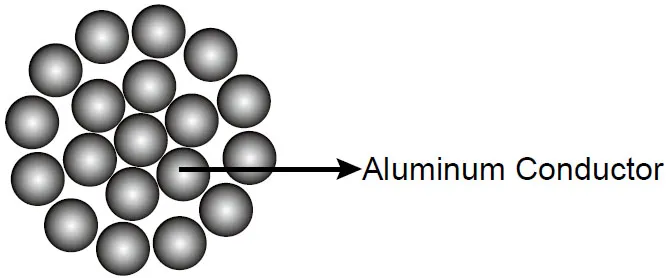

IEC 61089 Standard All Aluminum Conductor AAC Construction

Concentric lay stranded Aluminium Conductor ( AAC) is manufactured fromelectrolyticallyrefined aluminium with a minimum purity of 99.7%. and made up of oneor morestrandsof hard drawn 1350 aluminum alloy.

Application:

AAC conductor is also known as aluminum stranded conductor which areusedinurbanareas where spans are usually short but high conductivity is required andareincommonuse on overhead lines for in low, medium and high voltage. The excellent corrosionresistance of aluminium has made AAC a conductor of choice in coastal areas.

Product Paramenters

Code Nominal Stranding Overall Weight Rated Electrical Current
Area Diameter Strength Resistance Rating*
mm² NO.×mm mm kg/km kN Ω/km A
10 10 7/1.35 4.05 27.4 1.95 2.8633 62
16 16 7/1.71 5.13 43.8 3.04 1.7896 84
25 25 7/2.13 6.39 68.4 4.5 1.1453 110
40 40 7/2.70 8.1 109.4 6.8 0.7158 147
63 63 7/3.39 10.17 172.3 10.39 0.4545 195
100 100 19/2.59 12.95 274.8 17 0.2877 259
125 125 19/2.89 14.45 343.6 21.25 0.2302 297
160 160 19/3.27 16.35 439.8 26.4 0.1798 345
200 200 19/3.66 18.3 549.7 32 0.1439 396
250 250 19/4.09 20.45 687.1 40 0.1151 454
315 315 37/3.29 23.03 867.9 51.97 0.0916 522
400 400 37/3.71 25.97 1102 64 0.0721 603
450 450 37/3.94 27.58 1239.8 72 0.0641 647
500 500 37/4.15 29.05 1377.6 80 0.0577 688
560 560 37/4.39 30.73 1542.9 89.6 0.0515 736
630 630 61/3.63 32.67 1738.3 100.8 0.0458 789
710 710 61/3.85 34.65 1959.1 113.6 0.0407 845
800 800 61/4.09 36.81 2207.4 128 0.0361 905
900 900 61/4.33 38.97 2483.3 144 0.0321 967
1000 1000 61/4.57 41.13 2759.2 160 0.0289 1026
1120* 1120 91/3.96 43.56 3093.5 179.2 0.0258 1091
1250* 1250 91/4.18 45.98 3452.6 200 0.0231 1157
1400* 1400 91/4.43 48.73 3866.9 224 0.0207 1226
1500* 1500 91/4.58 50.38 4143.1 240 0.0193 1270
