Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.
Home / Product / Low Voltage Power Cable / YJV 3*50mm² Copper PVC Power Cable for Building

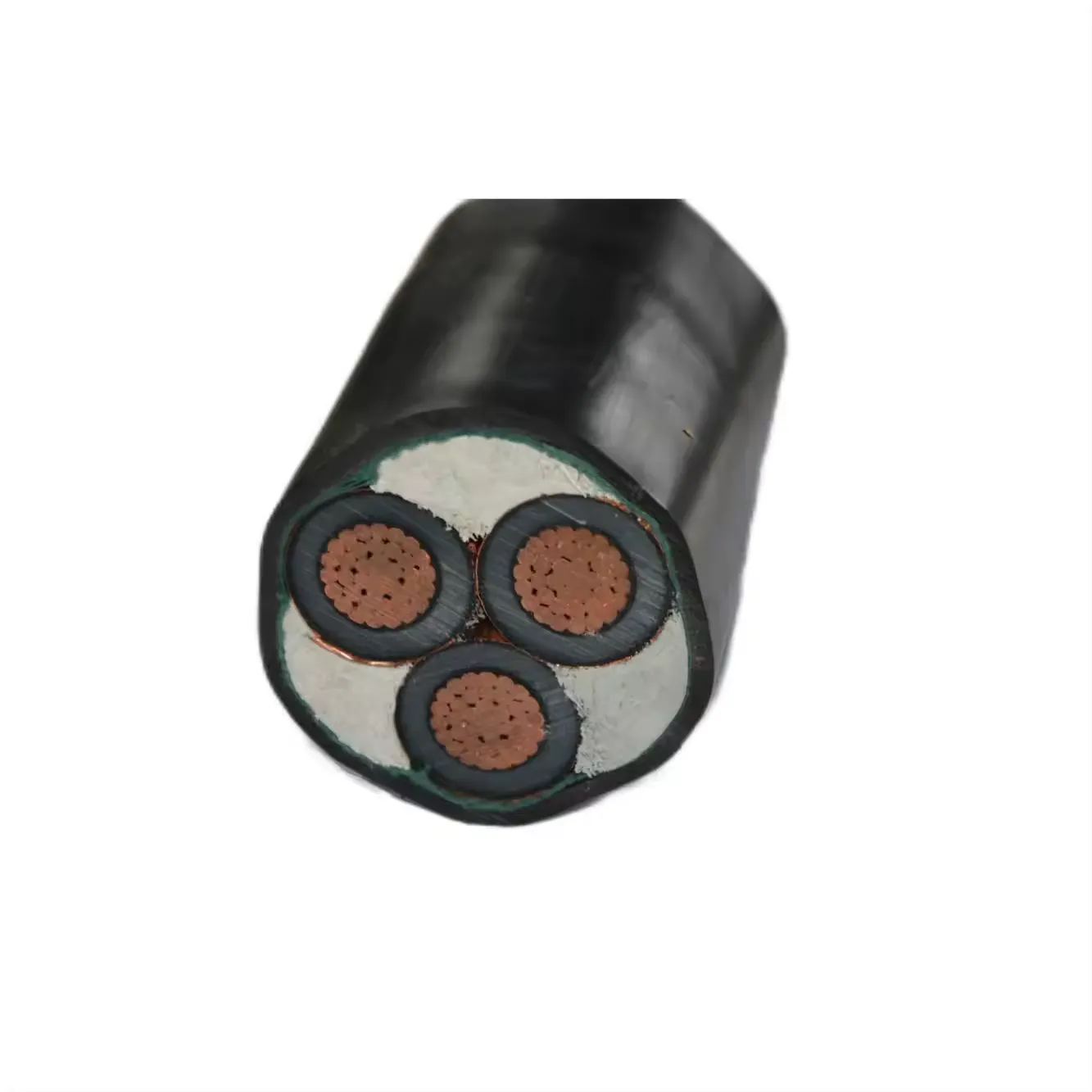

Wholesale Custom Fire-Resistant YJV Series PVC Power Cable Low Voltage 3*50mm² with Copper Conductor for Building
This wholesale custom YJV series power cable from JianYun is engineered for robust and reliable low voltage power distribution in building and construction applications. Featuring copper conductors and XLPE insulation, this fire-resistant cable ensures optimal electrical performance and safety.The PVC sheathed and steel tape armored construction provides enhanced mechanical protection.This 3-core, 3*50mm² cable, manufactured in Henan, China, is certified to ISO9001/CCC standards and compliant with GB/T12706. The NH-YJV model is designed for a rated voltage of 0.6/1 KV and is identified by its black jacket.
| Attribute | Value |
|---|---|
| Insulation Material | xlpe |
| Application | Construction |
| Conductor Material | Copper |
| Jacket | PVC |
| Attribute | Value |
|---|---|
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | NH-YJV |
| Type | LOW VOLTAGE |
| Size | 3*50 |
| TYPE | YJV |
| Conductor | pure copper |
| Color | Black |
| Insulation | XLPE |
| Certificate | ISO9001/CCC |
| Rated voltage | 0.6/1 KV 8.7/15KV |
| Standard | GB/T12706 |
| Material | PVC+Copper |
| Coree | 3 cores |
| Sheath | PVC Shealth |
