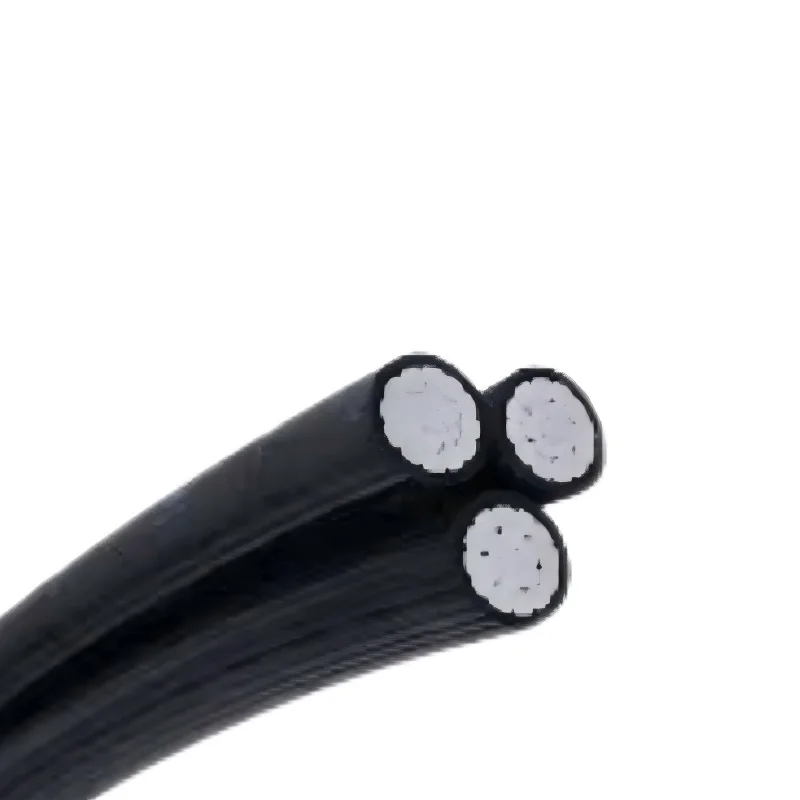

Aluminum Conductor XLPE ABC (ASTM, 3x95mm2 + 50mm2)

Price of ASTM Standard 3x95mm2 50mm2 Aerial Bundled Cable Aluminum Conductor XLPE insulation Cable

Send Email Get Best Price

Details

Key attributes

Industry-specific attributes

Insulation Material	/
Application	Construction
Conductor Material	Aluminum
Jacket	PVC

Other attributes

Place of Origin	Henan, China
Working Temperature	90°C, 70°C
Rated Voltage	0.6/1KV
Rated Current	16A, 30A
Brand Name	JYXL
Model Number	Aerial Bundled Cables to AS/NZS 3560.1
Type	LOW VOLTAGE
Size	4 CORE
Product name	16mm2 25mm2 50mm2 70mm2 Aluminium Conductors 3 Phases ABC Cable
Conductor	Aluminum
Color	Balck
Insulation	PVC
Certificate	CCC
Rated voltage	0.6/1KV
MOQ	1000
Standard	AS/NZS 3560.1
Package	Wooden Drum
Usage	Power Transmission Lines

PRODUCT SHOW

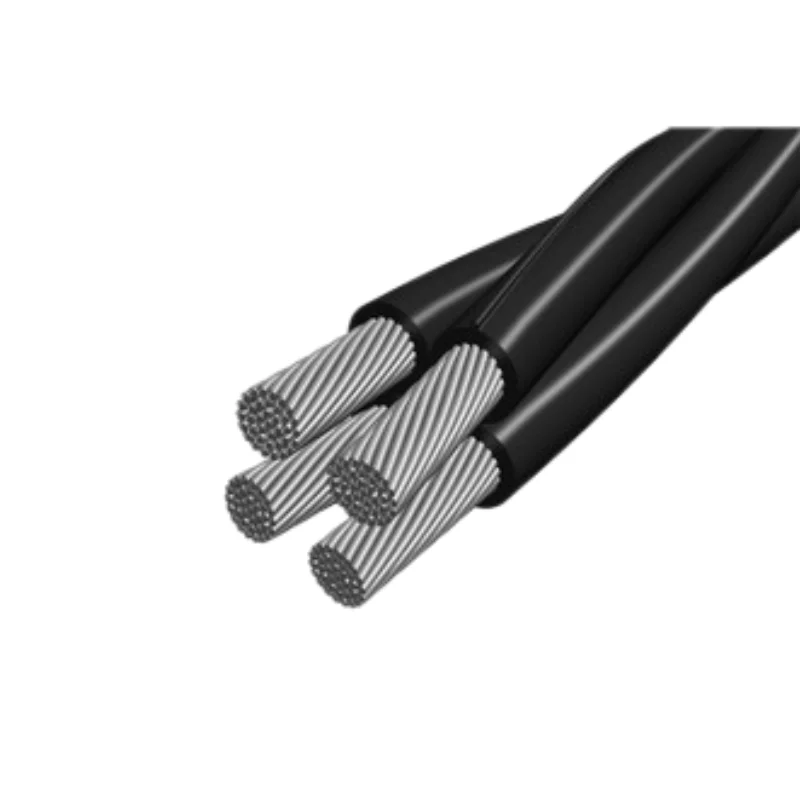

16mm2 25mm2 50mm2 70mm2 Aluminium Conductors 3 Phases ABC Cable

Construction

Phase Conductor:The conductors shall be of aluminium wires and are compacted circular stranded (RM).

Insulation：XLPE

Standard

AS/NZS 3560.1

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

PRODUCT DETAIL

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm2	kN	A	mm	kg/km
2x16 RM	4.4	78	15	140
2x25 RM	7	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550
4x16 RM	8.8	74	18.1	290
4x25 RM	14	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84	280	43.9	2020
