Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

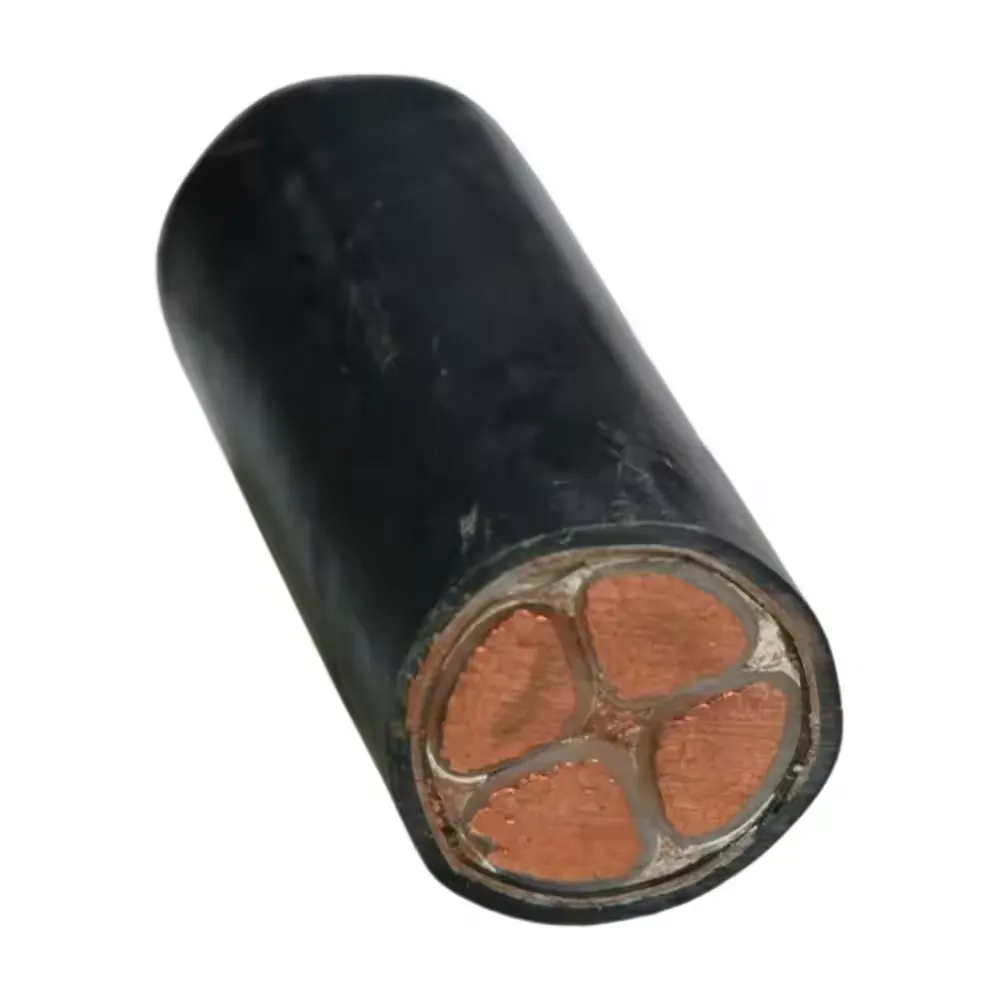

Home / Product / Low Voltage Power Cable / Copper Core STA Armored Underground Cable
High-Quality Construction Application: This product is designed for various construction applications, ensuring reliable performance and durability in demanding environments.
Durable XLPE Insulation: The cable features XLPE insulation material, providing excellent heat resistance and mechanical strength, making it suitable for outdoor use.
Copper Conductor with Low Voltage Rating: The product boasts a 0.6/1kv low voltage rating, ensuring safe and efficient transmission of electrical power.
Armored with Steel Tape for Added Protection: The cable is armored with steel tape, providing enhanced protection against mechanical damage and environmental stress.
Suitable for Wide Range of Applications: This 4-core power cable is ideal for various construction applications, including power distribution and transmission, thanks to its robust design and reliable performance.
| Key attributes | |
|---|---|
Industry-specific attributes |
|
| Type | LOW VOLTAGE |
| Voltage | 0.6/1Kv |
| Conductor Material | Copper |
| Conductor | Alulminum |
| Insulation Material | xlpe |
| Insulation | PVC |
| Jacket | PVC |
| Sheath | PVC Shealth |
| Core | 4 |
| Size | 4x240mm |
| Color | Black |
| Material | CU/XLPE/STA/PVC |
| Application | Construction |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | YJV22- AL/XLPE/PVC/STA |
| Certificate | ISO9001/CCC |
Packaging and delivery |
|
| Selling Units: | Single item |
| Single package size: | 1X1X1 cm |
| Single gross weight: | 1.000 kg |
|
0.6/1kV-4 core copper conductor XLPE insulated steel tape armored PVC sheathed power cable
|
||||||||
|
Nominal cross sectional area
|
Insulation thickness
|
Non-magnetic steel tape thickness
|
Sheath thickness
|
Approximate outer diameter
|
Approx.
|
Max.D.C resistance of conductor（20℃）
|
Current carrying capacity
|
|
|
weight
|
||||||||
|
mm2
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
Ω/km
|
In Air(A)
|
In Ground(A)
|
|
4X2.5
|
0.7
|
0.2
|
1.8
|
14.7
|
288
|
12.1
|
-
|
23
|
|
4X4
|
0.7
|
0.2
|
1.8
|
15.8
|
334
|
7.41
|
-
|
30
|
|
4X6
|
0.7
|
0.2
|
1.8
|
17
|
384
|
4.61
|
-
|
38
|
|
4X10
|
0.7
|
0.2
|
1.8
|
20
|
509
|
3.08
|
50
|
47
|
|
4X16
|
0.9
|
0.2
|
1.8
|
22.7
|
649
|
1.91
|
64
|
62
|
|
4X25
|
0.9
|
0.2
|
1.8
|
26.7
|
880
|
1.2
|
86
|
78
|
|
4X35
|
0.9
|
0.2
|
1.8
|
28.3
|
1040
|
0.868
|
105
|
94
|
|
4X50
|
1
|
0.2
|
2.1
|
32
|
1365
|
0.641
|
125
|
110
|
|
4X70
|
1.1
|
0.5
|
2.1
|
38.5
|
2138
|
0.443
|
165
|
135
|
|
4X95
|
1.1
|
0.5
|
2.3
|
42.9
|
2638
|
0.32
|
200
|
160
|
|
4X120
|
1.2
|
0.5
|
2.4
|
47.4
|
3202
|
0.253
|
235
|
185
|
|
4X150
|
1.4
|
0.5
|
2.6
|
52.3
|
3847
|
0.206
|
270
|
205
|
|
4X185
|
1.6
|
0.5
|
2.7
|
57.5
|
4585
|
0.164
|
310
|
235
|
|
4X240
|
1.7
|
0.5
|
3
|
64.3
|
5709
|
0.125
|
365
|
260
|
|
4X300
|
1.8
|
0.5
|
3.1
|
70.3
|
6805
|
0.1
|
420
|
290
|
