0.6/1KV Aluminum XLPE SWA/PVC Armored Cable

0.6/1KV Aluminum XLPE SWA/PVC Armored Cable

50mm2 70mm2 95mm2 120mm2 0.6/1KV AL/XLPE/SWA/PVC Copper Core Steel Wire Steel Tape Armored Cable

Send Email Get Best Price
  • Details

Attribute

Value

Industry-specific attributes

Insulation Material

xlpe

Application

Construction

Conductor Material

Copper

Jacket

PVC

Other attributes

Place of Origin

Henan, China

Working Temperature

70°C, 90°C

Rated Voltage

0.6/1KV, 12 V, 6 KV, 15 kV, 20 kV, 750 kV, 10 kV, 3.6 kV, 1 kV

Rated Current

30A, 16A, 10A, 20A

Brand Name

JianYun

Model Number

YJLV22- AL/XLPE/PVC/STA

Type

LOW VOLTAGE

Size

4 core

Conductor

Aluminum

Insulation

PVC

Certificate

ISO9001/CCC

Core

4

Sheath

PVC Shealth

Voltage

0.6/1Kv

Material

AL/XLPE/STA/PVC

Model Number

YJLV22- AL/XLPE/STA/PVC

Application

construction

Color

Black

Packaging and delivery

Selling Units:

Single item

Single package size:

1X1X1 cm

Single gross weight:

1.000 kg

PRODUCT SHOW

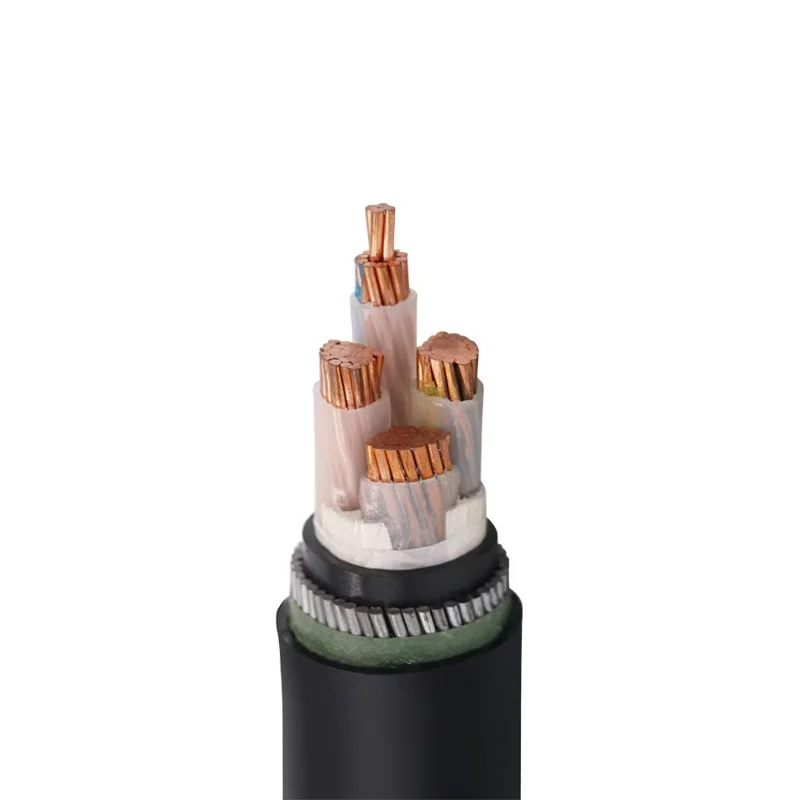

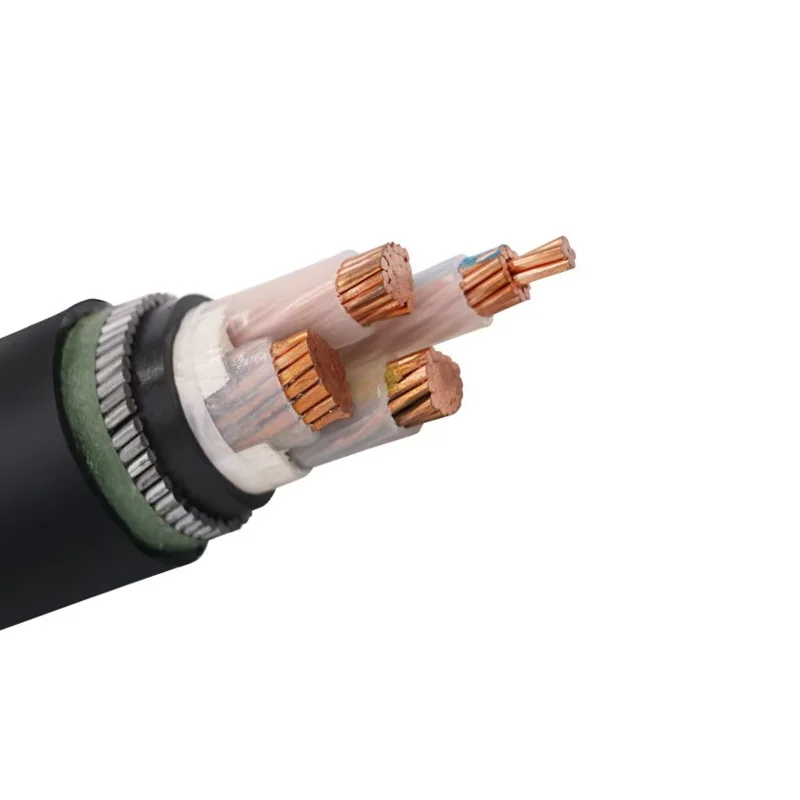

0.6/1kV 4 core copper conductor XLPE insulated steel wire cable PVC sheathed power cable 0.6/1kV 4 core copper conductor XLPE insulated steel wire cable PVC sheathed power cable

0.6/1kV 4 core copper conductor XLPE insulated steel wire cable PVC sheathed power cable

Construction

Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
Insulation:Cross-linked polyethylene XLPE
Filler: Non-hygroscopic material
Binder tape: Non-hygroscopic material
Inner sheath: Polyvinyl chloride PVC
Armour: Double galvanized steel tape
Outer sheath: Polyvinyl chloride PVC



Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Product Paramenters

0.6/1kV-4 core copper conductor XLPE insulated steel wire cable armored PVC sheathed power cable

Nominal cross sectional area

Insulation thickness

Non-magnetic steel tape thickness

Sheath thickness

Approximate outer diameter

Approx.

Max.D.C resistance of conductor（20℃）

Current carrying capacity

weight

mm2

mm

mm

mm

mm

kg/km

Ω/km

In Air(A)

In Ground(A)

4X2.5

0.7

0.2

1.8

14.7

288

12.1

-

23

4X4

0.7

0.2

1.8

15.8

334

7.41

-

30

4X6

0.7

0.2

1.8

17

384

4.61

-

38

4X10

0.7

0.2

1.8

20

509

3.08

50

47

4X16

0.9

0.2

1.8

22.7

649

1.91

64

62

4X25

0.9

0.2

1.8

26.7

880

1.2

86

78

4X35

0.9

0.2

1.8

28.3

1040

0.868

105

94

4X50

1

0.2

2.1

32

1365

0.641

125

110

4X70

1.1

0.5

2.1

38.5

2138

0.443

165

135

4X95

1.1

0.5

2.3

42.9

2638

0.32

200

160

4X120

1.2

0.5

2.4

47.4

3202

0.253

235

185

4X150

1.4

0.5

2.6

52.3

3847

0.206

270

205

4X185

1.6

0.5

2.7

57.5

4585

0.164

310

235

4X240

1.7

0.5

3

64.3

5709

0.125

365

260

4X300

1.8

0.5

3.1

70.3

6805

0.1

420

290
