Low Voltage Power Cable
Low Voltage Power Cable

Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

Home / Product / Low Voltage Power Cable / USA Underground Copper XLPE Cable

USA Underground Copper XLPE Cable

USA Underground Copper XLPE Cable

120mm2 150mm2 185mm2 240mm2 CU/XLPE/PVC Single Core XLPE Insulation PVC Sheath CABLE for Underground USA

Send Email Get Best Price
  • Details

Attribute

Value

Industry-specific attributes

Insulation Material

xlpe

Application

Construction

Conductor Material

Copper

Jacket

PVC

Other attributes

Place of Origin

Henan, China

Working Temperature

90°C, 70°C

Rated Voltage

12 V, 25 V, 6 KV, 0.6 kV, 15 kV, 20 kV, 3.6 kV, 1 kV, 8.7 kV, 10 kV, 750 kV

Rated Current

10A, 20A, 16A, 50A, 30A, 25A, 60A

Brand Name

JYXL

Model Number

YJV- CU/XLPE/PVC

Type

LOW VOLTAGE

Size

1x120mm

Conductor

Copper

Insulation

XLPE

Certificate

ISO9001/CCC

Core

single core 4 core

Sheath

PVC Shealth

Voltage

0.6/1Kv

Material

CU/XLPE/PVC

Model Number

YJV- CU/XLPE/PVC

Application

construction

Color

Black

Packaging and delivery

Selling Units:

Single item

Single package size:

1X1X1 cm

Single gross weight:

1.000 kg

PRODUCT SHOW

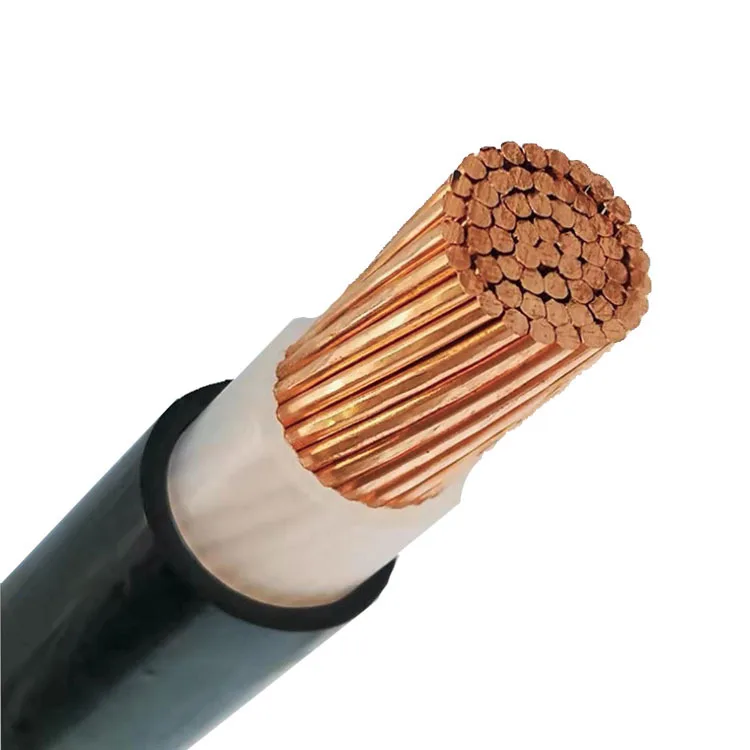

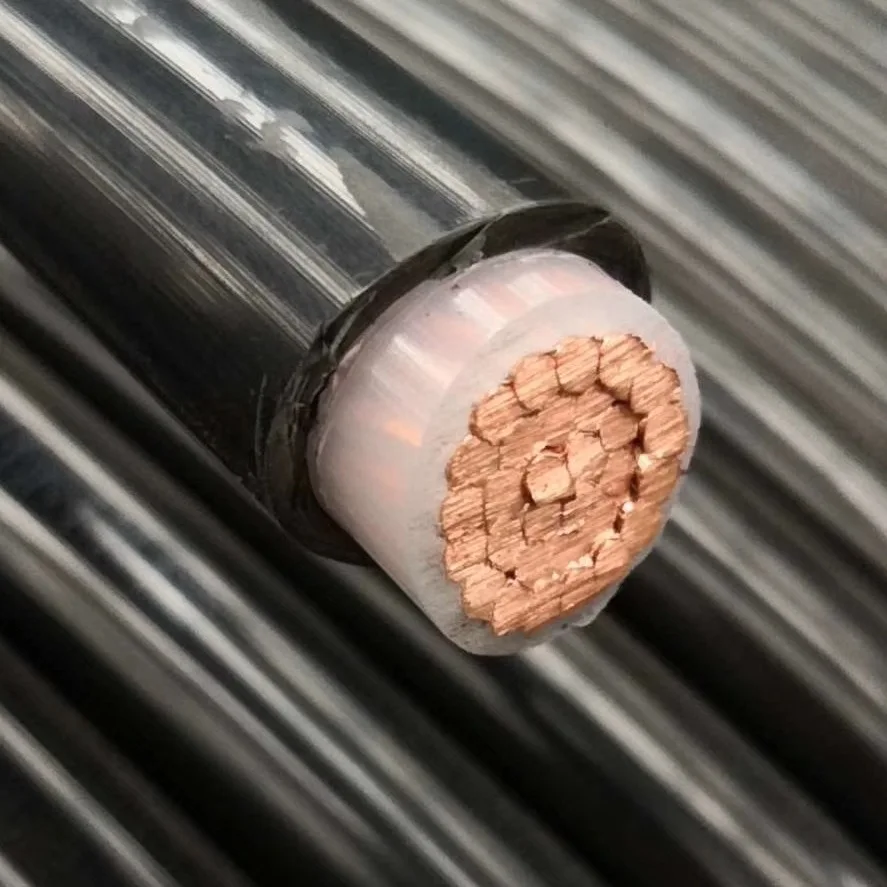

0.6/1kV Copper Conductor Single Core XLPE Insulated Unarmoured Power Cable 0.6/1kV Copper Conductor Single Core XLPE Insulated Unarmoured Power Cable

0.6/1kV Copper Conductor Single Core XLPE Insulated Unarmoured Power Cable

Conductors

plain Copper in accordance with IEC 60228.


Insulation

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.


Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.


Nominal Cross Section

Diameter of Conductor (Approx.)

Nominal Insulation Thickness

Nominal Sheath Thickness

Overall Diameter (Approx.)

mm^2

mm

mm

mm

mm

1x1.5

1.4

0.7

1.4

5.6

1x2.5

1.8

0.7

1.4

6

1x4

2.3

0.7

1.4

6.5

1x6

2.8

0.7

1.4

7

1x10

3.6

0.7

1.4

7.8

1x16

4.5

0.7

1.4

8.7

1x25

5.6

0.9

1.4

10.2

1x35

6.7

0.9

1.4

11.3

1x50

8

1

1.4

12.8

1x70

9.4

1.1

1.4

14.4

1x95

11

1.1

1.5

16.1

1x120

12.4

1.2

1.5

17.8

1x150

13.8

1.4

1.6

19.8

1x185

15.3

1.6

1.6

21.8

1x240

17.5

1.7

1.7

24.4

1x300

19.5

1.8

1.8

26.7

1x400

22.6

2

1.9

30.5

1x500

25.2

2.2

2

33.7

1x630

28.3

2.4

2.2

37.4

1x800

31.9

2.6

2.3

41.7

1x1000

35.7

2.8

2.4

46.2
