Medium voltage (MV) power cables are essential components in modern electrical power distribution systems, designed to handle voltages ranging from 1kV to 35kV. They serve as the backbone for transmitting electrical energy between substations, transformers, and end-user equipment in both industrial and utility settings.
Home / Product / Medium Voltage Power Cable / 1.8/6kV AL Armored Cable

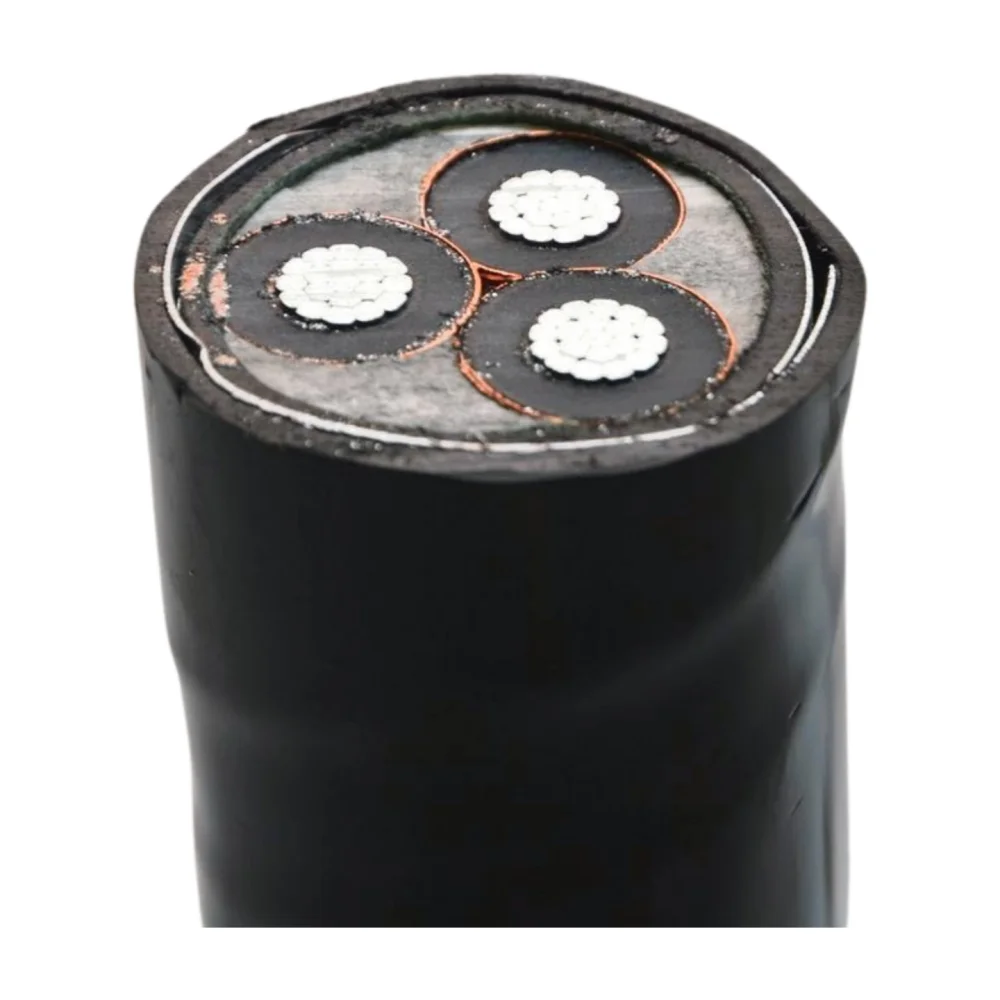

High-Quality Insulation and Jacket: This 1.8/3KV 3.6/6KV medium voltage cable features XLPE insulation and a durable PVC jacket, ensuring excellent electrical performance and long-lasting durability in construction applications.
Robust Armored Protection: The cable's steel tape armor provides enhanced protection against mechanical damage, making it ideal for underground applications where resistance to abrasion and impact is crucial.
Multi-Size Options: Available in various sizes, including 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, and 95mm, this cable caters to diverse construction needs, accommodating different installation requirements.
Compliance with International Standards: Certified to ISO 9001/CCC standards, this product ensures compliance with international quality and safety regulations, providing assurance to customers worldwide.
Reliable Performance for Construction Applications: Specifically designed for construction use, this power cable offers reliable performance in harsh environments, making it a trusted choice for builders and contractors seeking a durable and efficient solution.
| Key attributes | |
|---|---|
Industry-specific attributes |
|
| Insulation Material | xlpe |
| Application | Construction |
| Conductor Material | Aluminum |
| Jacket | PVC |
Other attributes |
|
| Type | Medium Voltage |
| Model Number | YJLV22- CU/XLPE/PVC/STA |
| Size | 3x25mm |
| Voltage | 1.8/3Kv 3.6/6Kv |
| Core | 3 |
| Sheath | PVC Shealth |
| Material | AL/XLPE/PVC/STA |
| Color | Black |
| Certificate | ISO9001/CCC |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Application | Construction |
|
1.8/3KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel Tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2 x 0.2
|
1.8
|
23.6
|
925
|
750
|
|
16
|
1.2
|
2 x 0.2
|
1.8
|
26.2
|
1205
|
925
|
|
25
|
1.2
|
2 x 0.2
|
1.9
|
29
|
1590
|
1145
|
|
35
|
1.2
|
2 x 0.2
|
1.9
|
31.6
|
1985
|
1370
|
|
50
|
1.2
|
2 x 0.2
|
2
|
34.1
|
2400
|
1605
|
|
70
|
1.2
|
2 x 0.5
|
2.2
|
39.5
|
3570
|
2410
|
|
95
|
1.3
|
2 x 0.5
|
2.3
|
43.7
|
4570
|
2950
|
|
120
|
1.3
|
2 x 0.5
|
2.4
|
46.1
|
5510
|
3440
|
|
150
|
1.4
|
2 x 0.5
|
2.6
|
50.6
|
6500
|
3955
|
|
185
|
1.5
|
2 x 0.5
|
2.7
|
54.9
|
7825
|
4650
|
|
240
|
1.6
|
2 x 0.5
|
2.8
|
60
|
9825
|
5600
|
|
300
|
1.6
|
2 x0.5
|
3
|
65.4
|
12030
|
6660
|
|
400
|
1.8
|
2 x 0.5
|
3.2
|
71.8
|
14970
|
8055
|
|
500
|
1.8
|
2 x 0.8
|
3.5
|
80.5
|
18880
|
10035
|
|
630
|
1.8
|
2 x 0.8
|
3.8
|
92.3
|
25070
|
13620
|
|
3.6/6KV
|
|
|||||
|
Nom. Cross- Section Area
|
Nom. Bedding Thickness
|
No. of Steel tapes x Nom. Tape Thickness
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
|
|
CU
|
AL
|
|||||
|
mm²
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
10
|
1.2
|
2X0.2
|
1.8
|
26
|
1060
|
885
|
|
16
|
1.2
|
2X0.2
|
1.8
|
28.3
|
1340
|
1055
|
|
25
|
1.2
|
2X0.2
|
1.9
|
31.3
|
1735
|
1305
|
|
35
|
1.3
|
2X0.2
|
2
|
34.1
|
2170
|
1555
|
|
50
|
1.3
|
2X0.5
|
2.1
|
38
|
2950
|
2170
|
|
70
|
1.4
|
2X0.5
|
2.3
|
41.8
|
3795
|
2635
|
|
95
|
1.5
|
2X0.5
|
2.4
|
46.1
|
4810
|
3200
|
|
120
|
1.5
|
2X0.5
|
2.5
|
49.5
|
5770
|
3705
|
|
150
|
1.6
|
2X0.5
|
2.6
|
52.9
|
6775
|
4235
|
|
185
|
1.6
|
2X0.5
|
2.8
|
57.2
|
8120
|
4950
|
|
240
|
1.8
|
2X0.5
|
2.9
|
63
|
10250
|
6025
|
|
300
|
1.9
|
2X0.5
|
3.1
|
69
|
12570
|
7200
|
|
400
|
2
|
2X0.5
|
3.4
|
76.7
|
15740
|
8870
|
|
500
|
2.1
|
2X0.8
|
3.6
|
86.5
|
20550
|
11750
|
|
630
|
2.2
|
2X0.8
|
3.9
|
96
|
25830
|
14400
|
