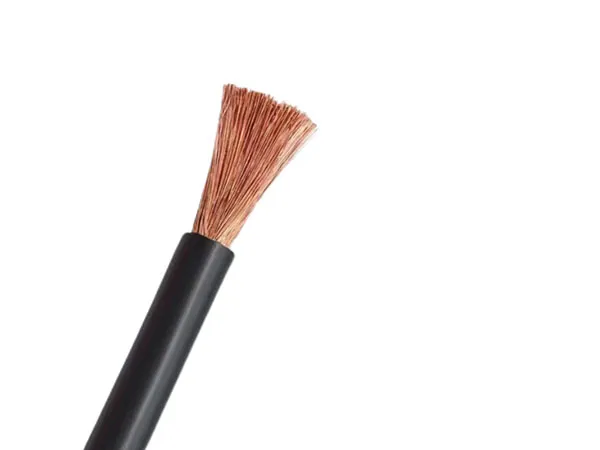

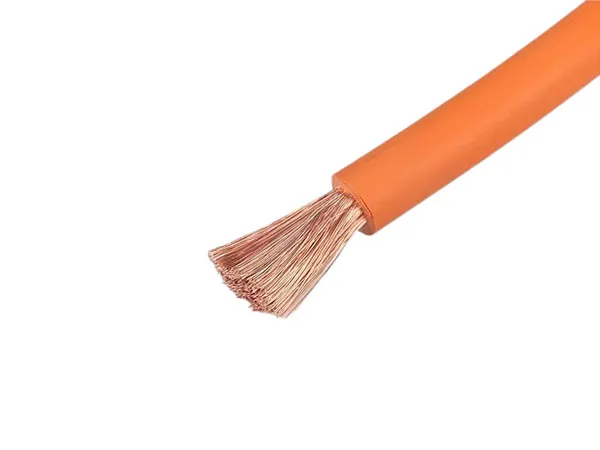

Welding cables are specialized electrical cables designed to handle the high amperage and voltage demands of welding machines. These cables are engineered to provide reliable power transmission between the welding machine and the electrode or ground clamp.They are typically made with a robust copper conductor core to maximize conductivity and minimize voltage drop, ensuring optimal performance during welding operations.
Conductor
Generally to Class 6 flexible copper conductor according to IEC 60228 BS EN 60228 (previously BS 6360)
Separator:
PET (Polyester Tape)
Sheath:
The rubber compound
Product features:
Soft, resistant to bending and a certain degree of weather resistance.
Executive standard:
GB/T 5013-2008 Additional standard for rubber insulated cables with rated voltage 450/750V and below;
Use characteristics;
Rated voltage:
The rated voltage is 0.2kV, and the highest voltage of the DC ripple system should not exceed 1kV. Working temperature The long-term allowable maximum working temperature of cable conductor is 60ºC.
Application:
This product is suitable for DC ripple voltage 1000V and below lines. It is suitable for all kinds of special mobile cables for welding equipment.
| Model | Name | Main Applications | Working temperature of Core ≤0C |
| YH | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
| YHF | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
| Synthetic elastomer Sheath Welding Cable |
| Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
| Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218 | 230 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316 | 331 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592 | 610 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066 | 1102 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 1348 | 1392 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 | 1678 | 1698 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 1983 | 2020 |
