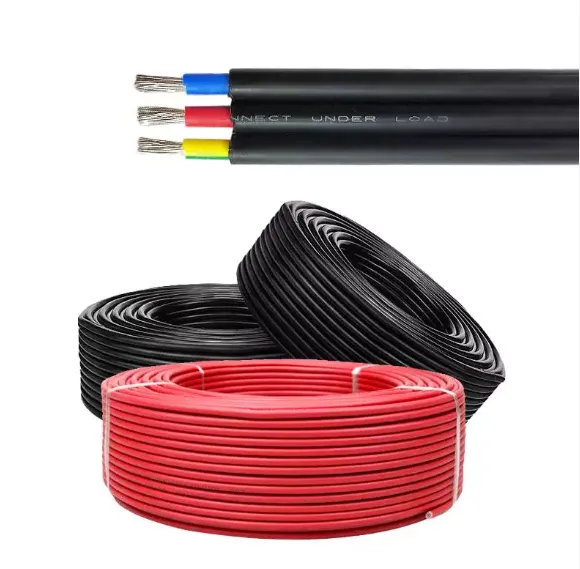

Photovoltaic cable is a specialized electrical cable designed specifically for solar power systems. These cables are engineered to handle the unique demands of photovoltaic installations, including exposure to UV radiation, extreme weather conditions, and high voltage DC current.

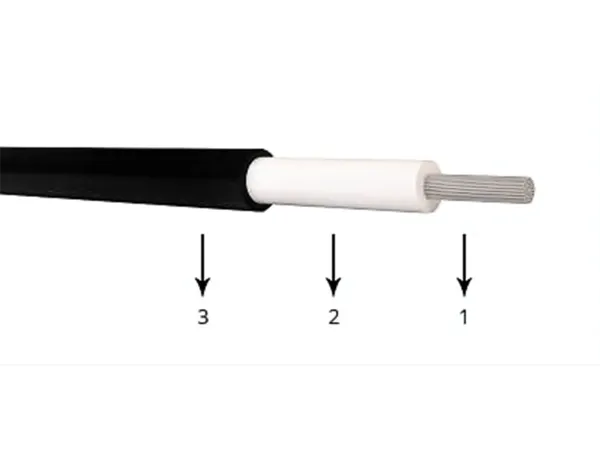

1、tinned copper wire
2、halogen free insulation
3、halogen free sheath
Large phonetovoltaic power generation, city streetlight large photovoltaic power generation, buildinglarge photovoltaic power generation.
1、UV Resistance: Full protection against ultravioletrays.
2、Outdoor durability: resists extreme temperatures(-40°Cto 120“C) and ozone resistant.
3、Halogen-free :Low Smoke Emission & LowToxicity/Corrosively during fire.
4、Properties against fire : flame retardant, fireretardant.
5、Flexibility and stripping ability : for fast and easyinstallation.
6、aterial: Zero Halogen & Cross-Linked PolyolefinCompound, Annealed Tinned Copper Conductor.
| No. of cores x Construction | Conductor | Outer Diameter | Resistance Max.(Ω/km) | Current Aarring Capacity |
| （mm2） | Construction（n / mm） | (mm) | (A) | |
| 1*1.5 | 30/0.25 | 4.9 | 13.3 | 30 |
| 1.2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
| 1*4 | 56/0.3 | 6.1 | 4.75 | 50 |
| 1.6 | 84/0.3 | 7.2 | 3.39 | 70 |
| 1*10 | 142/0.3 | 9 | 1.95 | 98 |
| 1*16 | 228/0.3 | 10.2 | 1.24 | 132 |
| 1*25 | 361/0.3 | 12 | 0.795 | 176 |
| 1*35 | 525/0.3 | 13.8 | 0.565 | 218 |
| 1*50 | 720/0.3 | 14.8 | 0.393 | 280 |
| 1*70 | 988/0.3 | 16.9 | 0.277 | 350 |
| 1*95 | 1349/0.3 | 18.7 | 0.21 | 410 |
| 1*120 | 1691/0.3 | 20.7 | 0.164 | 480 |
