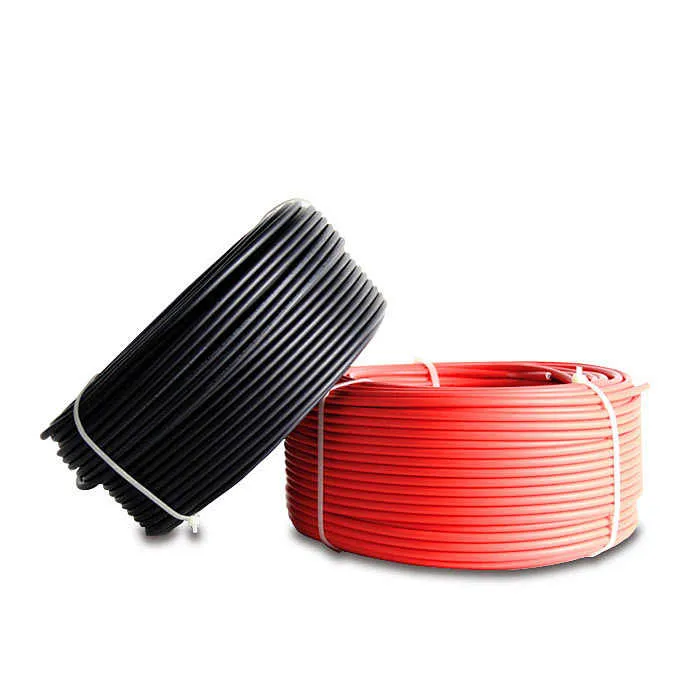

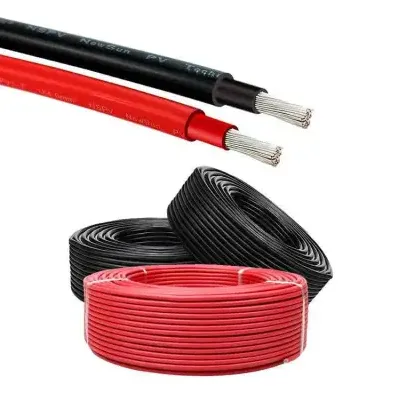

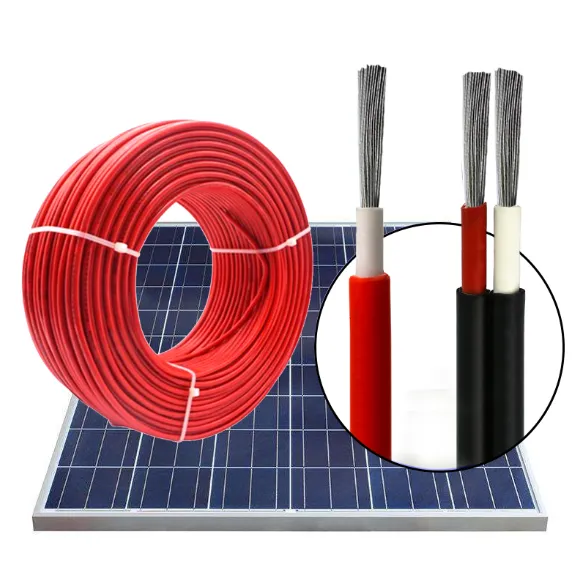

PV1-F solar cable is a high-quality photovoltaic cable designed specifically for solar energy systems. It features a single core of tinned copper conductors, insulated with UV-resistant and flame-retardant materials like PVC or XLPE, which provide protection against environmental factors such as sunlight, moisture, and mechanical stress.
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

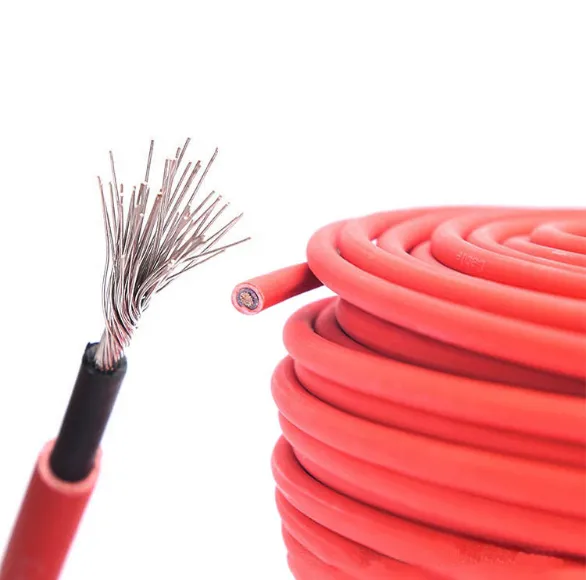

Cable Construction
Conductor: Tinned copper
Insulation: XLPO(Crosslinked polyolefin)
Outer Sheath: PVC(Poly Vinyl Chloride)
Technical Specification
Nominal Voltage: UO/U 0.6/1KV(AC)/ 1KV(DC)
Test Voltage: No break down at 6.5kv(AC)50HZ 5min & 20℃±0.5/15kv(DC)5min 20℃±0.5
Temperature Rating connectors: Working temperature -40℃～+90℃,Max conductor temperature 125C(continuously20h),Allowable short circuit temperature 200°C in 5second.
| Construction | Conductor Construction | Insulation Nominal Thickness | Sheath Nominal Thickness | Outer diameter | ConductorResistance at 20℃ Max | Current Carrying Capacity |
| n×mm2 | n×mm | mm | mm | mm | Ω/Km | A |
| 1×2.5 | 49x0.24 | ≥0.5 | ≥0.5 | 5.2 | 8.21 | 41 |
| 1×4.0 | 56×0.28 | ≥0.5 | ≥0.5 | 5.9 | 5.09 | 55 |
| 1×6 | 84×0.28 | ≥0.5 | ≥0.5 | 6.2 | 3.39 | 70 |
| 1×10 | 77x0.39 | ≥0.5 | ≥0.5 | 7.3 | 1.95 | 98 |
| 1x16 | 126x0.39 | ≥0.5 | ≥0.5 | 8.5 | 1.24 | 132 |
